M5Stack CoreS3 SE IoT Controller w/o Battery Bottom

SKU: M5-K128-SE
Regular price $71.76 Sale price $48.99
32% OFF
incl. VAT

📦 Location of the warehouse: US

4 in stock
📦 Free shipping on orders over $50 in the US!
Pre-order:
If an item is currently unavailable, you can place a pre-order. We will ship it as soon as our stock is replenished.
🚀
Express Shipping:
Need it faster? Contact us via email or through our Live Chat Support, and we will arrange an expedited delivery for you.
Visa
PayPal
Mastercard
American Express
Shop Pay
M5Stack CoreS3 SE IoT Controller w/o Battery Bottom

M5Stack CoreS3 SE IoT Controller w/o Battery Bottom

$48.99

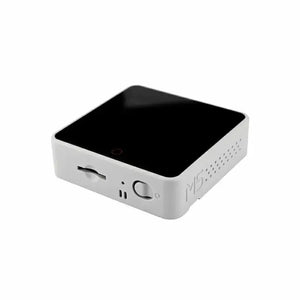

M5CoreS3 SE is a lightweight version of the third-generation CoreS3 main unit within the M5Stack development kit lineup. It operates on the ESP32-S3 solution and features a dual-core Xtensa LX7 processor, running at 240 MHz. With built-in (2.4G) WiFi, it includes 16MB FLASH and 8MB PSRAM for ample program storage. Downloads can be made via the Type-C interface, which supports OTG and CDC functions, allowing for easy USB device connectivity and firmware updates. The device features a durable 2.0-inch capacitive touch IPS screen protected by a high-strength glass panel.

Differences Between M5Stack CoreS3 and M5Stack CoreS3 SE

The M5CoreS3 SE utilizes the AXP2101 power management chip along with a 4-way power flow control circuit designed for efficient low power consumption. It also features an onboard MicroSD card slot and a BM8563 RTC chip, ensuring precise timing and sleep-timer functionalities. For audio output, it includes a high-fidelity 16-bit I2S amplifier chip AW88298 along with a built-in 1W speaker. For audio input, it has an ES7210 audio decoding chip with dual microphone inputs.

The device is equipped with an independent power button and a reset (RST) button, both featuring a built-in delay circuit. Long-pressing the reset button allows users to enter program download mode. This product is ideal for IoT development, various DIY projects, smart home control systems, and industrial automation control systems.

Version Comparison

In comparison to the M5CoreS3, the M5CoreS3 SE lacks a camera (GC0308), proximity sensor (LCR-553ALS-WA), IMU (BMI270), or magnetic compass (BMM150). The M5CoreS3 SE features a medium grey finish, unlike the black-grey of the M5CoreS3, and its glass panel extends to the camera position. The DinBase accessory included in the original M5CoreS3 kit is not attached here.

Hardware Peripheral M5CoreS3 M5CoreS3 SE
Camera (GC0308) ×
Proximity Sensor (LTR-553ALS-WA) ×
IMU (BMI270) ×
Compass (BMM150) ×
RTC
MIC
SPEAKER
PMIC (AXP2101)
16MB FLASH and 8MB PSRAM
TOUCH

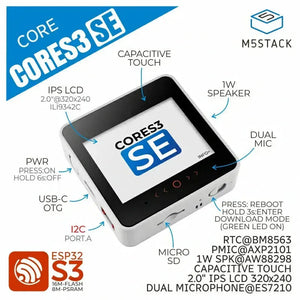

Features

  • Developed using the ESP32-S3, offering WiFi support with 16MB Flash and 8MB PSRAM

  • Equipped with speakers and dual microphones

  • Capacitive touch screen for easy interaction

  • Includes a MicroSD card slot for expanded storage

  • Protected with high-strength glass

  • Supports OTG and CDC functions for versatile connections

  • Low-power design powered by AXP2101 management chip

  • Compatible with programming platforms like Arduino and UIFlow

Includes

  • 1 × M5CoreS3 SE

Applications

  • IoT development projects

  • Various DIY project implementations

  • Smart home automation systems

  • Industrial control systems

Specifications

Resources Parameters
MCU ESP32-S3 @ Xtensa LX7, 16MB FLASH and 8MB PSRAM, supports WiFi, OTG, and CDC functions
Touch IPS LCD Screen 2.0" @ 320x240 ILI9342C
Power Management Chip AXP2101
RTC BM8563
Speaker 16-bit I2S power amplifier chip AW88298 @ 1W
Audio Decoding Chip ES7210 with dual microphone inputs
Grove Output Maximum Current (Lithium Battery Powered) DC4.2V / 940mA
Grove Output Maximum Current (USB Powered) DC5V / 680mA
Power Dissipation Battery: Standby mode: DC4.2V / 104.64uA; Working mode: DC4.2V / 109.67mA
USB power supply: Working mode: DC5V / 166.27mA
Product Size 54 x 54 x 15.5 mm
Package Size 133.4 x 95 x 21 mm
Product Weight 38.4 g
Package Weight 55.1 g

I2C Address

Chip ADDRESS
AXP2101 ADDR 0x34
AW88298 ADDR 0x36
FT6336U ADDR 0x38
ES7210 ADDR 0x40
BM8563 ADDR 0x51
AW9523 ADDR 0x58

Schematics

Preview

Preview

Preview

Preview

Preview

Preview

Preview

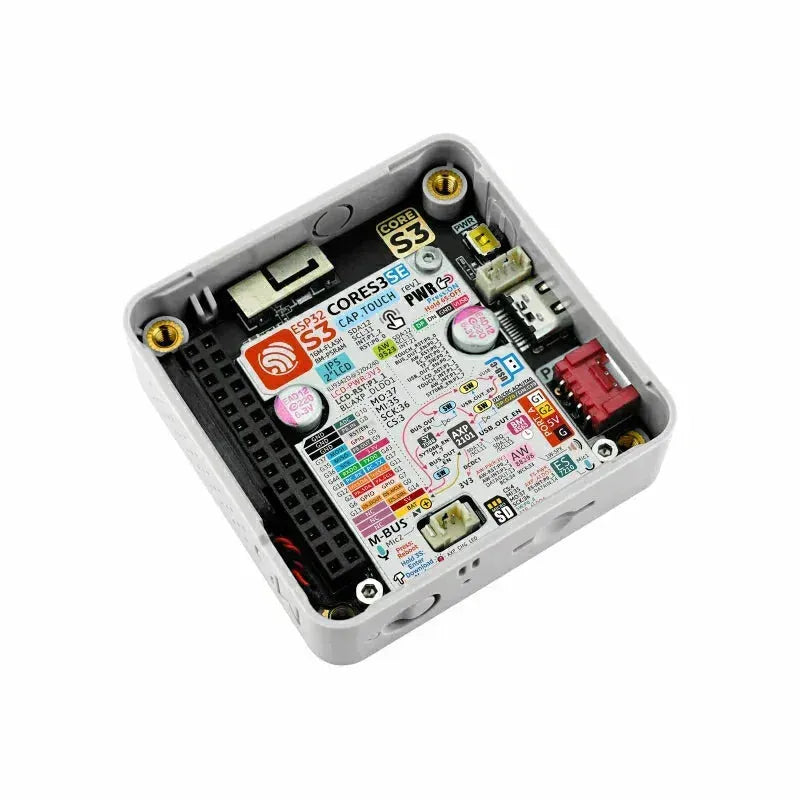

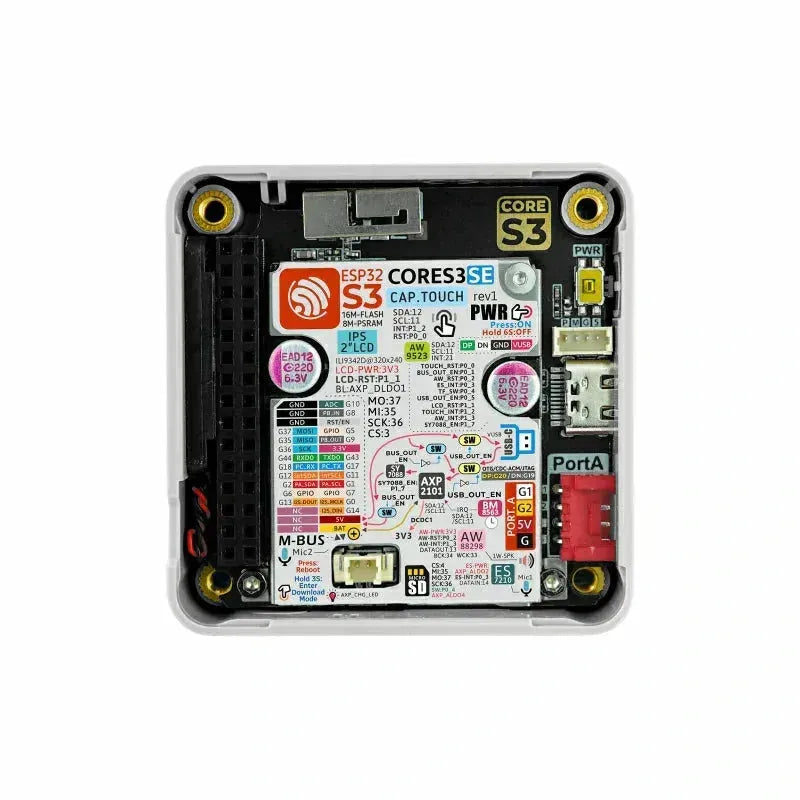

Pin Map

LCD Screen & MicroSD

LCD Resolution: 320x240

MicroSD Specifications
Supports MicroSD cards up to 16GB
ESP32S3 Chip GPIO37 GPIO36 GPIO3 GPIO35 GPIO4
AW9523B AW9523B_P1_1
AXP2101 AXP2101_DCDO1 AXP2101_LX1
ILI9342C MOSI SCK CS DC RST BL PWR
TF Card SPI_MOSI SPI_SCK SPI_MISO TF_CS

CAP.TOUCH

ESP32S3 Chip GPIO12 GPIO11 AW9523B_P1_2 AW9523B_P0_0
FT6336U I2C_SYS_SDA I2C_SYS_SCL TOUCH_INT TOUCH_RST

Microphone & Amplifier

ESP32S3 Chip GPIO12 GPIO11 AW9523B_P1_3 AW9523B_P0_2 GPIO34 GPIO33 GPIO13 GPIO0
ES7210 I2C_SYS_SDA I2C_SYS_SCL AW_INT AW_RST I2S_BCK I2S_WCK I2S_DATO MCLK
AW88298 I2C_SYS_SDA I2C_SYS_SCL

AXP Power LED

AXP2101 AXP_CHG_LED
Red LED RTC_VDD

RTC

ESP32S3 Chip GPIO12 GPIO11 AXP2101_IRQ
BM8563 I2C_SYS_SDA I2C_SYS_SCL AXP_WAKEUP

Internal I2C Connection

ESP32S3 Chip GPIO12 GPIO11
AXP2101 I2C_SYS_SDA I2C_SYS_SCL
BM8563 I2C_SYS_SDA I2C_SYS_SCL
ES7210 I2C_SYS_SDA I2C_SYS_SCL
AW88298 I2C_SYS_SDA I2C_SYS_SCL

PORT

Port Pin NOTE
PORT-A (RED) G2/G1 I2C
PORT-B (BLACK) G9/G8 GPIO
PORT-C (BLUE) G18/G17 UART (RX/TX)

Softwares

Quick Start

Arduino

NOTE
Please note that there are hardware differences between M5CoreS3 SE and M5CoreS3. Code from the library files involving the camera, proximity sensor, IMU, and magnetic sensor are not applicable to the M5CoreS3 SE.

Platform.IO

Easyloader

Easyloader Download Link Notes
CoreS3 SE Factory Firmware Easyloader Download /

I2C Communication Addresses

Chip ADDRESS
AXP2101 ADDR 0x34
AW88298 ADDR 0x36
FT6336U ADDR 0x38
ES7210 ADDR 0x40
BM8563 ADDR 0x51
AW9523 ADDR 0x58
