M5Stack Cap LoRa868 GNSS for Cardputer-Adv [Pre-order]
Note: Estimated arrival time: late September 2025. Orders will be shipped in the sequence they were received after arrival.

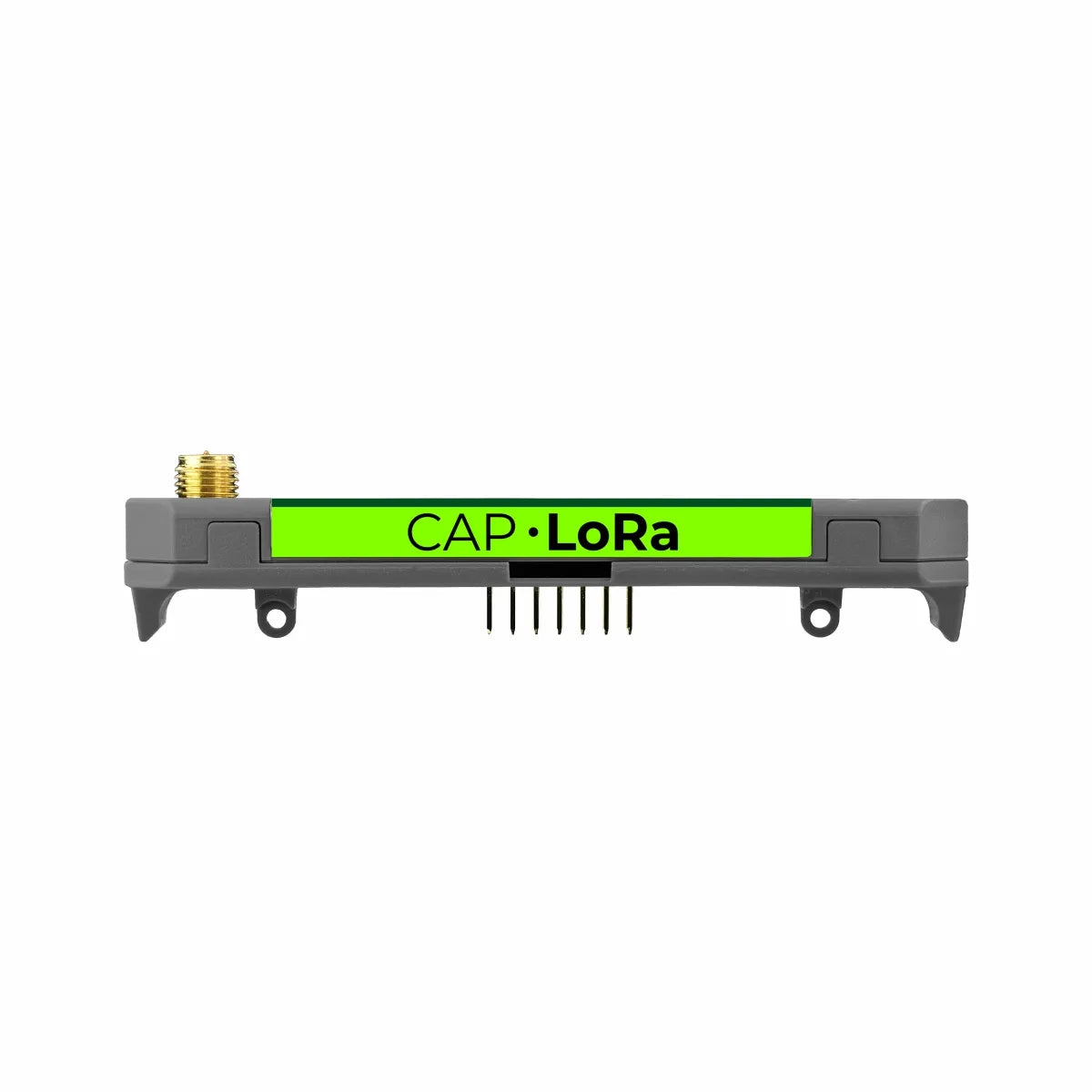

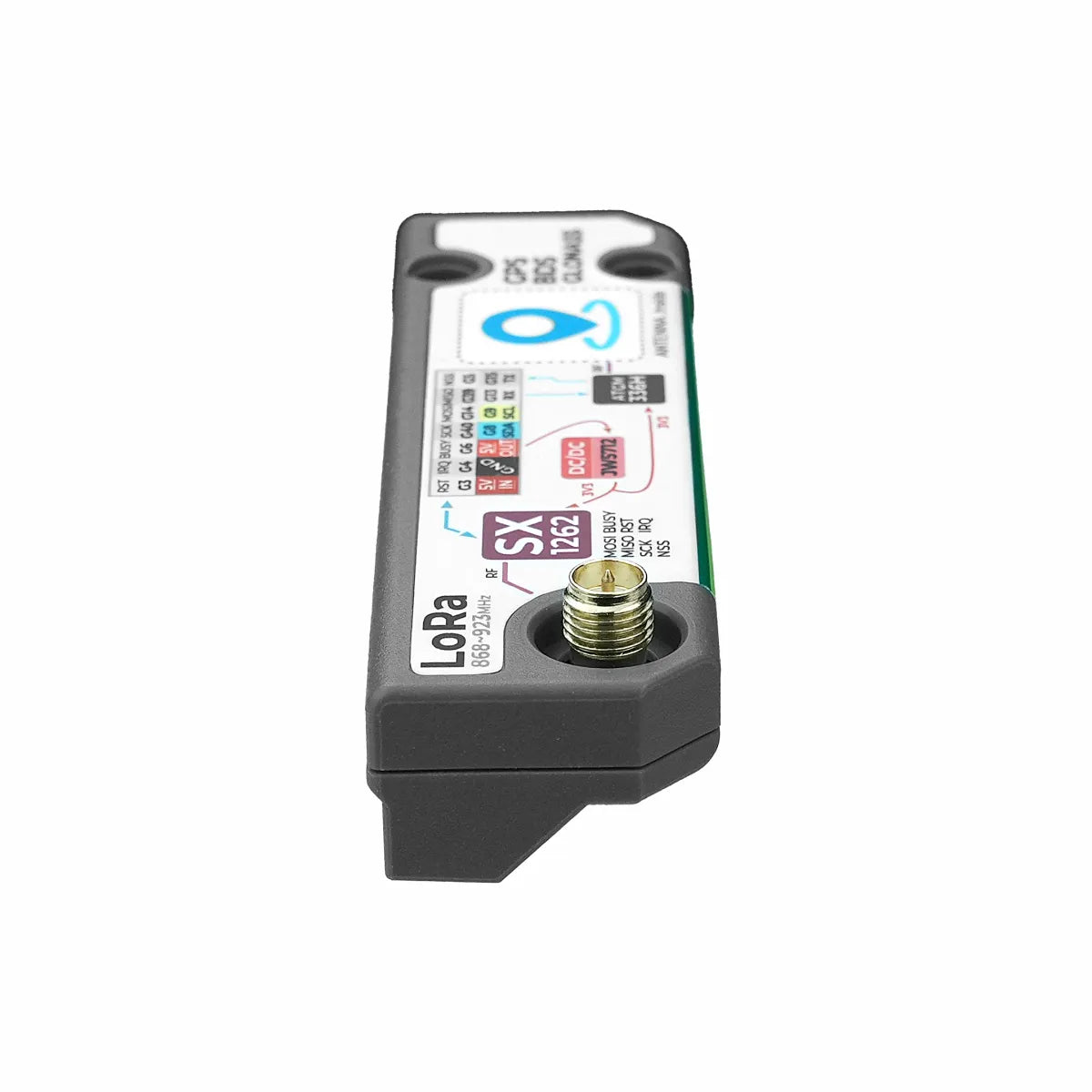

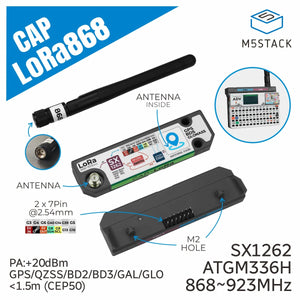

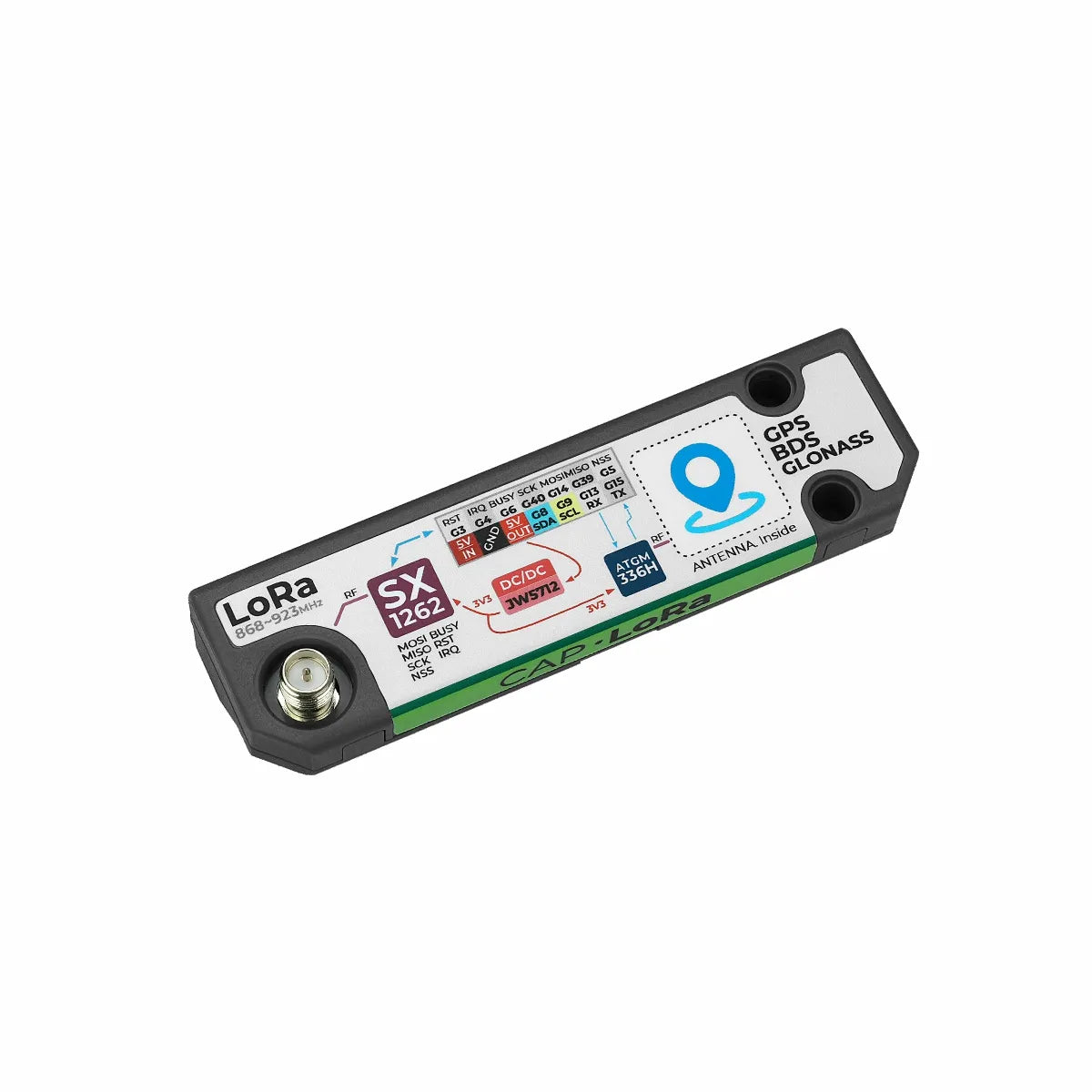

Introducing the LoRa+GPS Cap for Cardputer Adv, an advanced dual-function expansion module specifically engineered for the M5Stack Cardputer Adv Version. This innovative accessory integrates SX1262 LoRa wireless technology with ATGM336H GNSS positioning capabilities in a sleek, compact form factor. Experience superior 868–923 MHz wireless connectivity with exceptional range and minimal power consumption, alongside multi-constellation satellite navigation delivering precise location data. The design features an external SMA LoRa antenna for enhanced signal integrity and resistance to interference, complemented by an integrated ceramic GPS antenna that ensures dependable positioning performance even when satellite signals are weak.
Key Features
-
Integrated Functionality — Combined LoRa communication and GNSS positioning in a single compact expansion cap
-
Extended Range Communication — SX1262 LoRa transceiver operating at 868–923 MHz with maximum +20 dBm transmission power
-
Exceptional Receiver Performance — LoRa reception sensitivity reaching −147 dBm in low data rate configurations
-
Comprehensive Navigation Support — Compatible with GPS, QZSS, BeiDou (BD2/BD3), Galileo, and GLONASS systems
-
Precision Location Services — Better than 1.5 m CEP50 accuracy with multi-frequency capabilities
-
Rapid Satellite Acquisition — 23 second cold start time, reduced to just 1 second for hot starts
-
Dual Antenna Solution — Detachable SMA LoRa antenna paired with built-in ceramic GPS receiver
-
Energy-Efficient Design — Various sleep modes available for battery conservation in IoT deployments
-
Developer-Friendly — Full compatibility with Arduino and UiFlow2 development environments
Applications
-
Agricultural, environmental, and industrial telemetry and monitoring systems
-
Urban infrastructure and smart city monitoring networks
-
Location-aware home automation and security solutions
-
Asset tracking, fleet management, and navigation applications
-
Geolocation-enabled IoT devices and sensor networks
Specifications
| Specification | Parameter |
|---|---|
| LoRa Module | Stamp LoRa‑1262 @ SX1262 |
| Frequency Range | 868 ~ 923 MHz |
| Bitrate | Up to 300 kbps |
| Interface | SPI |
| Antenna | Rubber Duck Antenna @ 3 dBi, 108 × 9.3 mm |
| TX Power | +20 dBm |
| Sensitivity | −147 dBm (LoRa low data rate mode) |
| Modulation Modes | FSK, GFSK, MSK, GMSK, LoRa, OOK |
| GPS Module | ATGM336H‑6N @ AT6668 |
| Interface | UART, default 115200 bps @ 8N1 |
| Supported GNSS | GPS/QZSS/BD2/BD3/GAL/GLO |
| Frequency Points | BDS: B1I+B1C; GPS/QZSS/SBAS: L1; Galileo: E1; GLONASS: R1 |
| Channels | 50 channels |
| Accuracy | <1.5 m (CEP50) |
| Update Rate | Max 10 Hz |
| Protocol | NMEA 0183 4.1 |
| Sensitivity | Tracking: −162 dBm; Acquisition: −160 dBm; Cold Start: −148 dBm |
| TTFF | Cold Start: 23 s; Hot Start: 1 s |
| Current Consumption | GPS on, LoRa standby: 29.24 mA @ 5 V; GPS sleep, LoRa TX max: 129.72 mA @ 5 V |
| Product Size | 84.0 × 24.0 × 15.2 mm |
| Product Weight | 30.0 g |
| Package Size | 170.0 × 120.0 × 17.0 mm |
| Gross Weight | 32.2 g |
Package Contents
-
1 × LoRa+GPS Cap (LoRa868)
-
1 × LoRa Rubber Duck Antenna

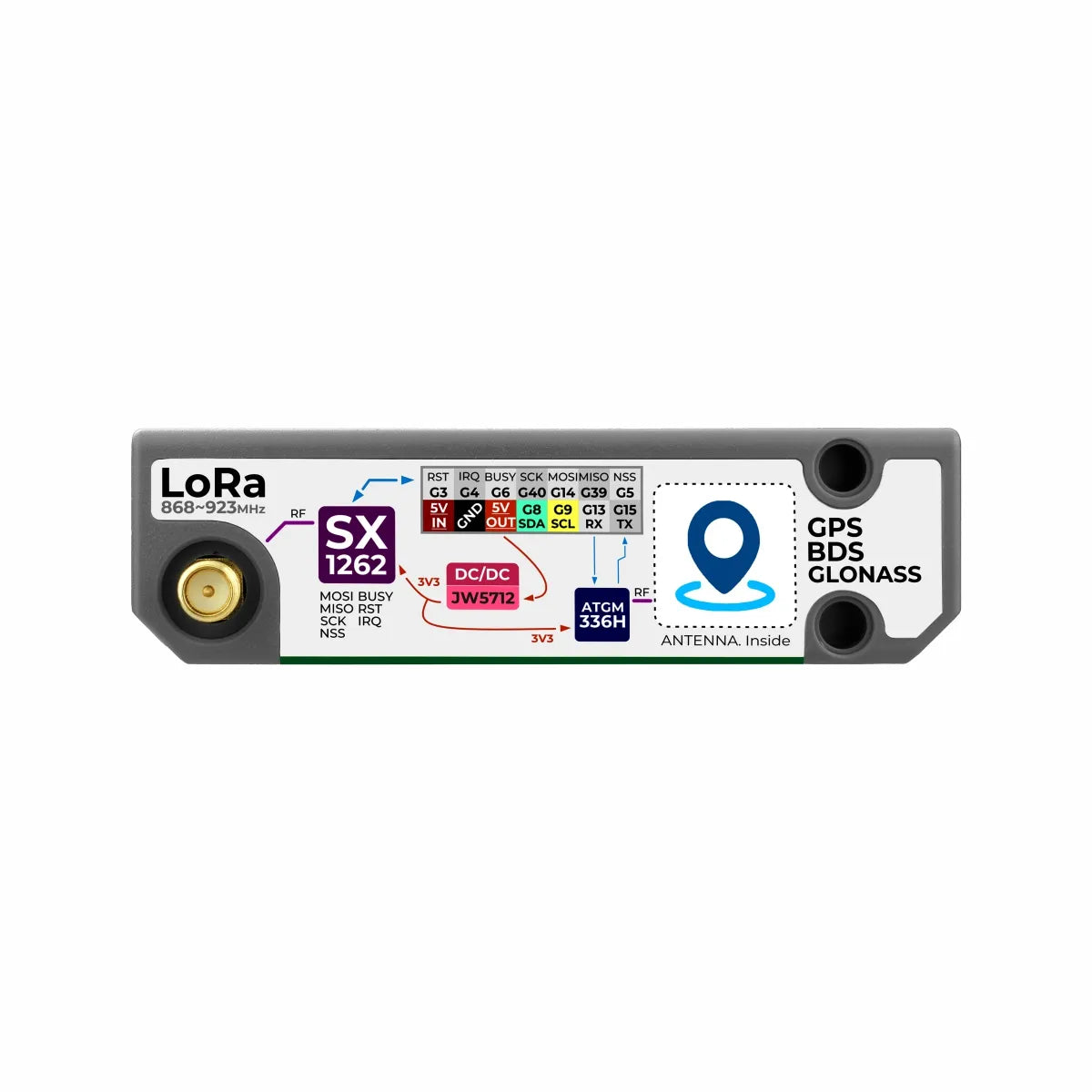

Pin Configuration
| Cap‑Bus Pin | Left | Right | Function |
|---|---|---|---|
| 1 | GPS_TX | 8 | LoRa_RST |
| 2 | GPS_RX | 9 | LoRa_IRQ |
| 3 | SCL | 10 | LoRa_BUSY |
| 4 | SDA | 11 | LoRa_SCK |
| 5 | 5V_OUT | 12 | LoRa_MOSI |
| 6 | GND | 13 | LoRa_MISO |
| 7 | 5V_IN | 14 | LoRa_NSS |
