Orbbec Femto Bolt 4K RGB + ToF Depth Camera for AI & Robotics
📦 Location of the warehouse: China
Free Shipping from $50 in the US, $70 for non-continental US
- US Delivery Time: 2~7 Business days.
- Non-Continental US Delivery Time: 3~9 working days.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished, usually within 10 working days. Special pre-sale products will specify the expected arrival time in the description.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
Orbbec Femto Bolt 4K RGB + ToF Depth Camera for AI & Robotics
The Femto Bolt delivers professional-grade 3D sensing in an ultra-compact design. Equipped with dual-mode depth and color imaging alongside convenient USB-C connectivity, this device leverages the same proven Time-of-Flight technology found in Microsoft Azure Kinect. Engineered for AI developers and vision researchers, it offers exceptional value without compromising on performance or operational flexibility in demanding 3D applications.
Migrating from Azure Kinect DK has never been easier. Access our comprehensive Quick-Start Development Library featuring step-by-step integration guides, Azure Kinect Sensor SDK-compatible APIs, and ready-to-deploy Azure Kinect Body Tracking demonstration projects that accelerate your Femto Bolt implementation.
Core Capabilities
- 1-megapixel Time-of-Flight depth sensor with expansive 120-degree field of view
- Flexible frame rates: 1024x1024 at 15fps or 640x576 at 30fps depth capture
- Ultra HD 4K RGB imaging with High Dynamic Range support
- Six-axis Inertial Measurement Unit for spatial awareness
- USB Type-C 3.2 interface providing both power delivery and high-speed data transfer
- Advanced synchronization triggering for seamless multi-camera array coordination
Technical Specifications
Imaging System Details
| Depth Technology | Time of Flight |
| Wavelength | 850nm |
| Depth Range | 0.25-5.46m depending on depth mode |
| Depth Resolution/FPS | Up to 1024X1024 at 15fps WFOV, 640X576 at 30fps NFOV |
| Depth FOV | H 120 degrees V 120 degrees WFOV, H 75 degrees V 65 degrees NFOV |
| RGB Resolution/FPS | Up to 3840X2160 at 30fps |
| RGB FOV | H 80 degrees x V 51 degrees |
| Processing | Host computer |
| IMU | Supported |
Depth typical systematic error accuracy less than 11 mm plus 0.1 percent distance; Depth random error std. dev. precision less than or equal to 17 mm
2D and 3D files available for download at Github.
Hardware Specifications
| Data Connection | USB 3.2 Type-C, Gen 1 |
| Power Input | USB Type-C/DC 12/2A |
| Trigger | Supported |
| Power Consumption | 4.35W Average |
| Operating Environment | 10 degrees C - 25 degrees C; Indoor/Semi-Outdoor; 8-90 percent RH non-condensing |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR and RGB |
| Dimensions W x H x D | 115mm x 40mm x 65mm |
| Weight | 335g |
| Installation | Bottom: 1/4-20UNC Side: 4 x M2.5 |
Industry Applications
Industrial Robotics
Advanced detection and tracking algorithms enable safer, more efficient automated workflows. Precision depth sensing delivers exact dimensional data for robotic manipulation systems, ensuring consistent quality and reducing operational risks.
Healthcare Solutions
Sophisticated computer vision tracks body movements with clinical precision. Integrated skeletal tracking algorithms powered by AI deliver actionable insights for elderly care facilities, physical rehabilitation programs, and next-generation fitness platforms.
Broadcast Media
Combine 1-megapixel depth data with 4K color capture to generate immersive volumetric content for augmented and virtual reality experiences. Enhanced depth tracking capabilities revolutionize interactive broadcasting and immersive storytelling.
Logistics Dimensioning
Capture accurate package measurements with sub-centimeter precision, streamlining warehouse operations and optimizing shipping workflows. Enhanced dimensional accuracy reduces costs and improves supply chain efficiency.

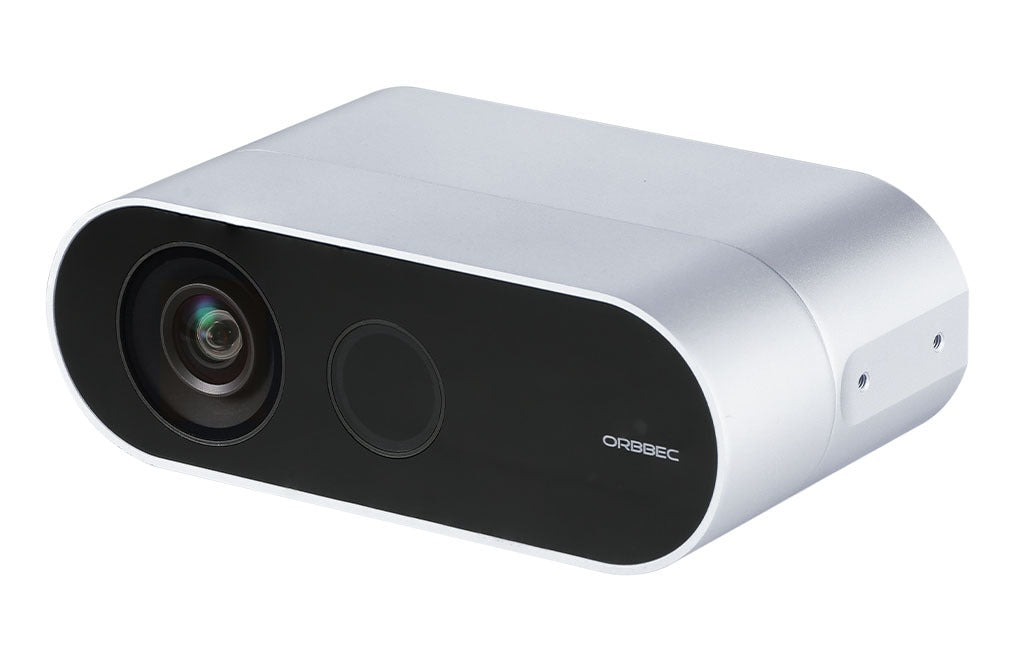

Premium RGB-D Performance in Space-Saving Design
Expansive 120-Degree Coverage for Comprehensive Scene Capture
Hardware-Accelerated Color-Depth Alignment

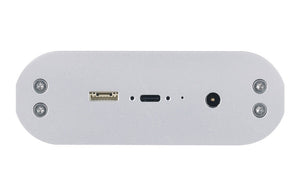

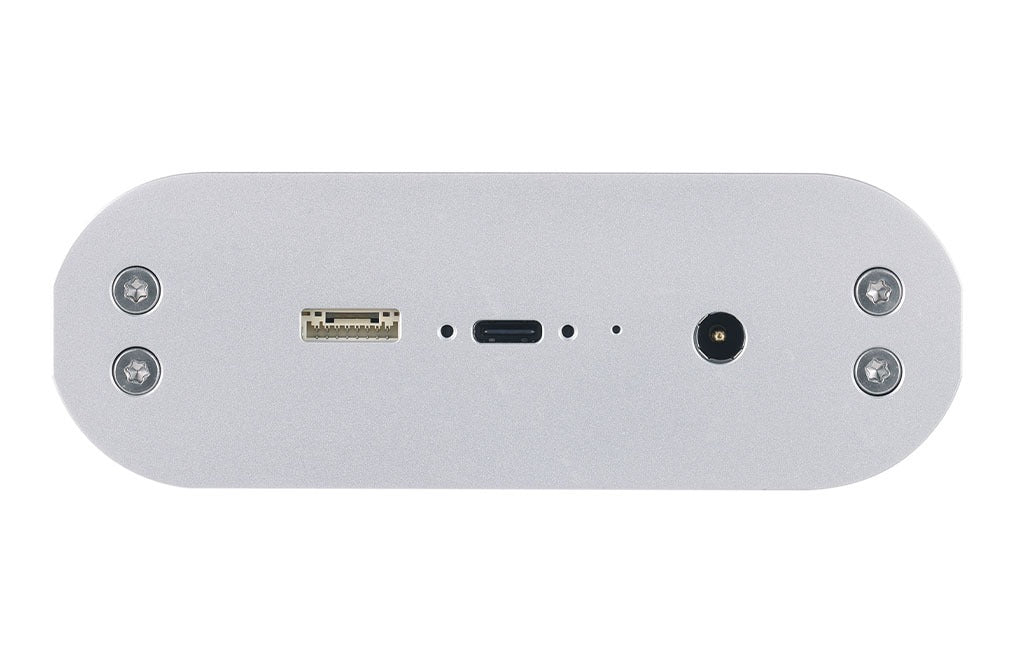

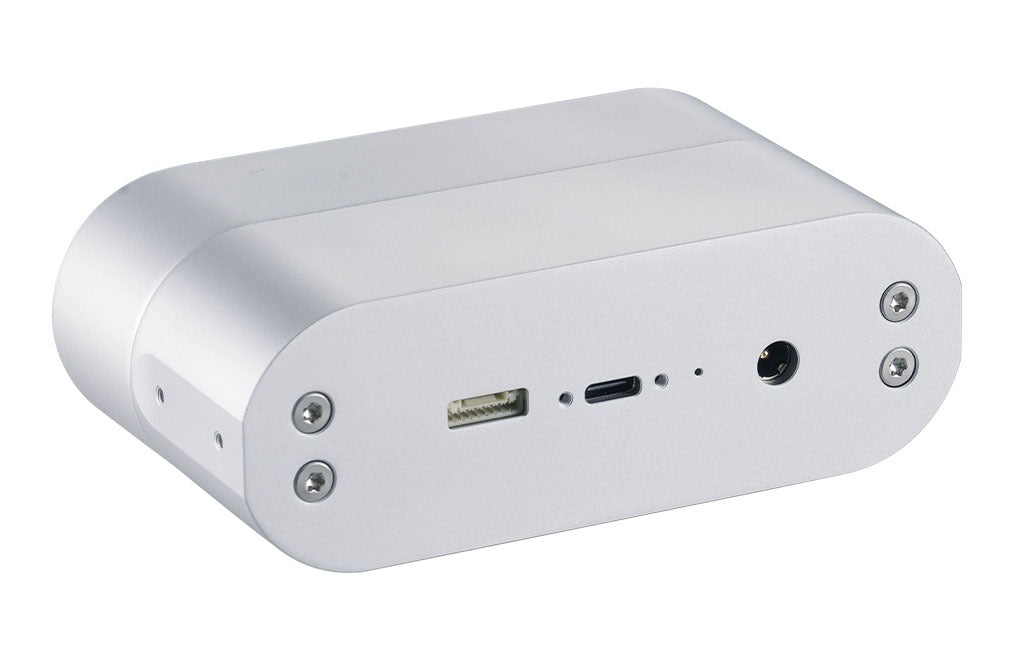

Streamlined USB-C Connectivity for Power and Data
Professional-Grade Multi-Camera Synchronization
