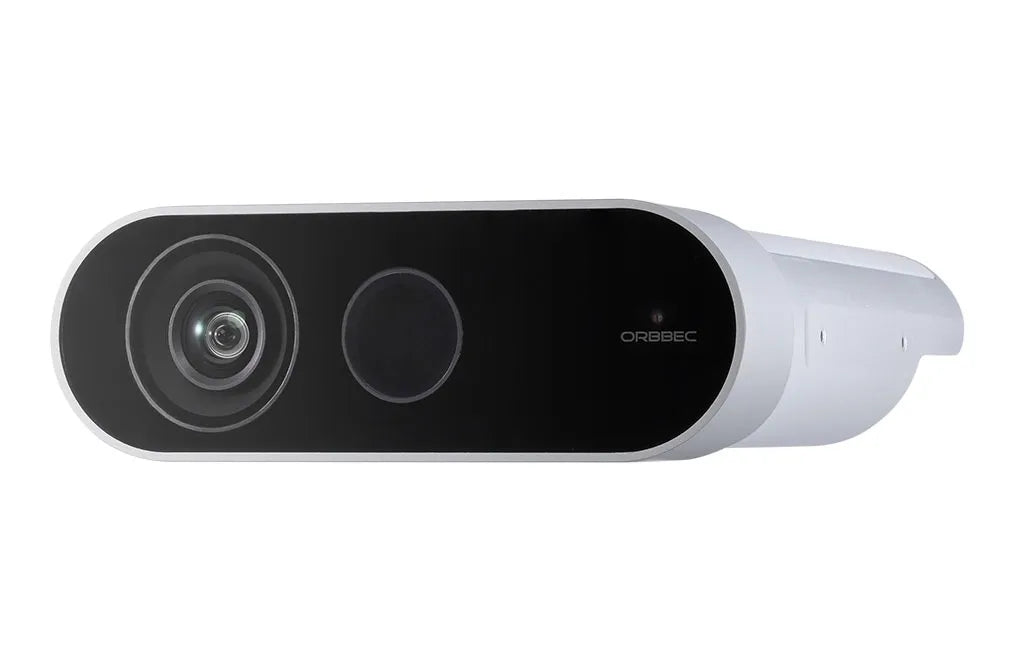

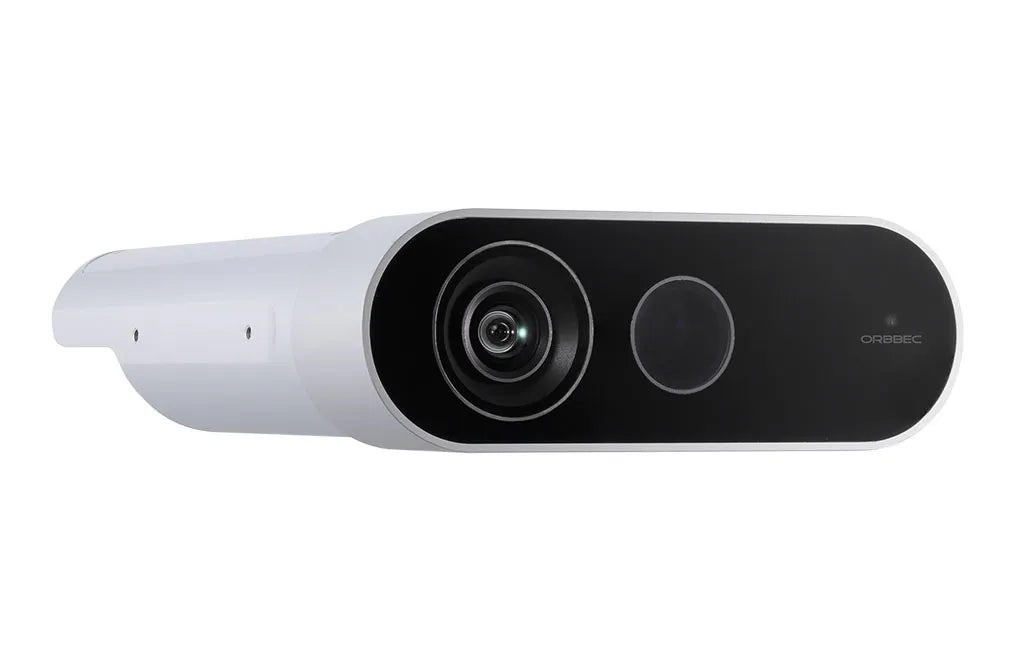

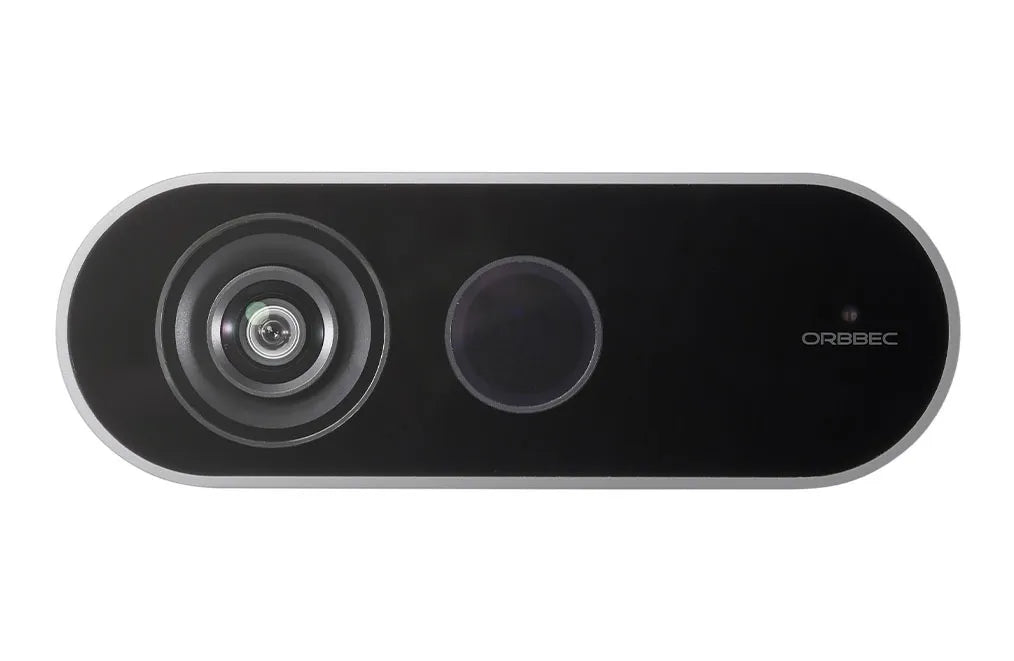

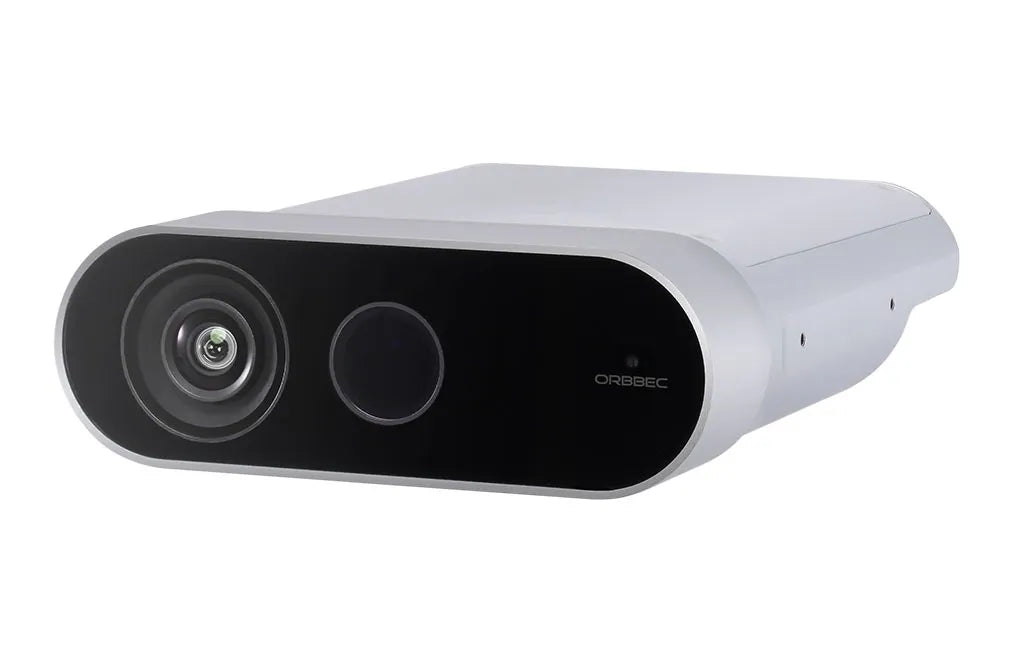

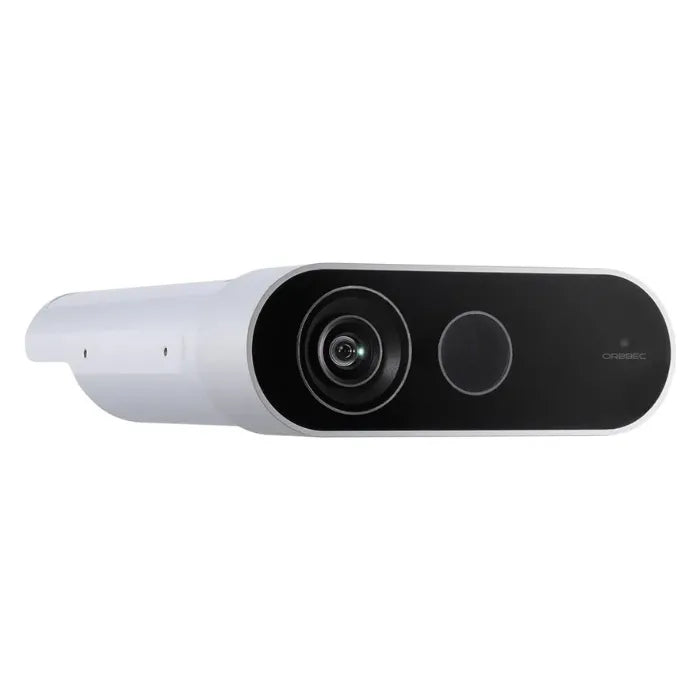

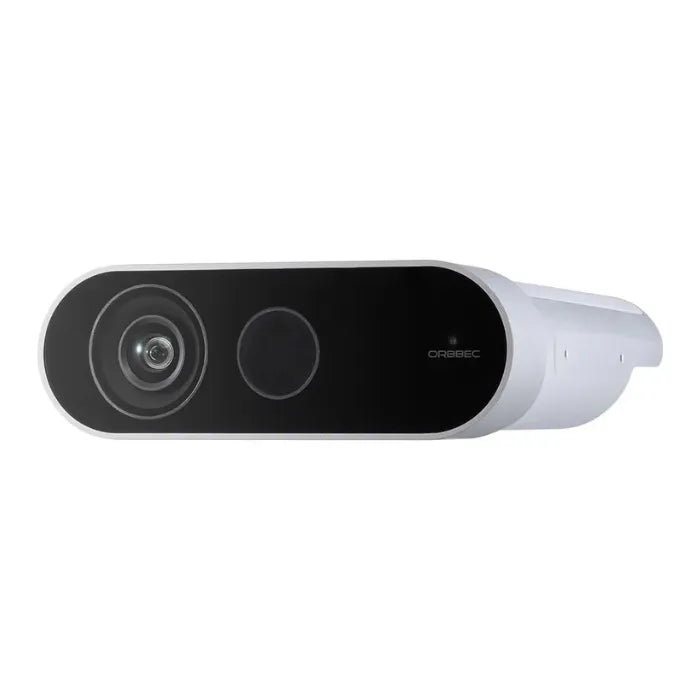

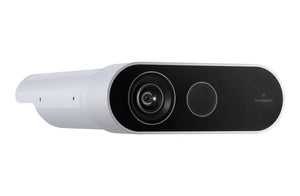

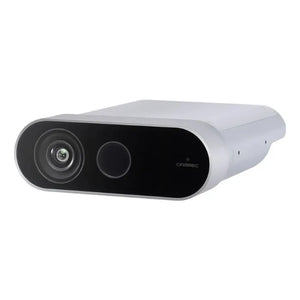

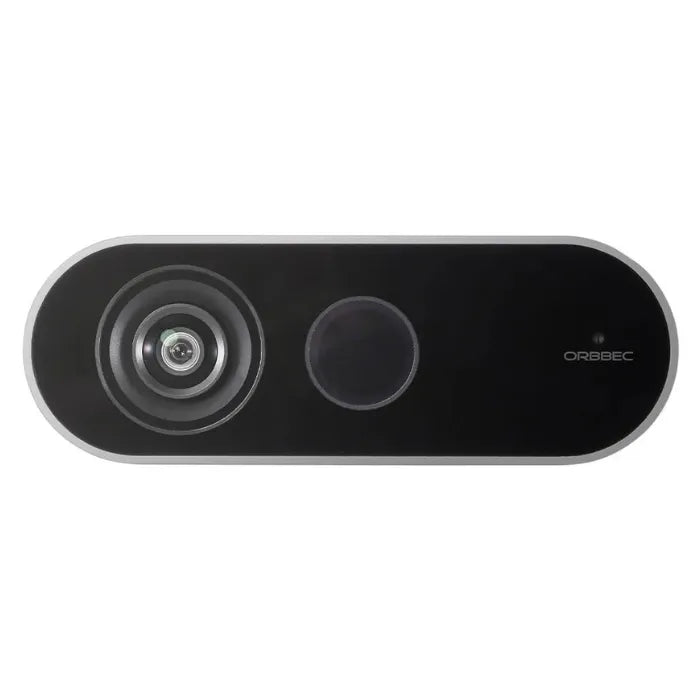

Orbbec Femto Mega 4K RGB + ToF Depth Camera for AI & Robotics
The Femto Mega delivers enterprise-grade 3D sensing capabilities through its advanced Time-of-Flight architecture and integrated NVIDIA Jetson processing. This intelligent depth camera streams high-fidelity spatial data in real-time via Ethernet or USB 3.0, offering developers a turnkey solution for building sophisticated computer vision and AI applications. Engineered with an expansive field of view and megapixel-class depth resolution, this system excels in demanding environments including industrial automation, warehouse operations, medical imaging, and immersive media production. The comprehensive Orbbec SDK ensures rapid deployment with exceptional measurement reliability.
Transitioning from Azure Kinect DK is seamless with our Quick-Start Development Library. Access comprehensive integration guides, leverage Azure Kinect Sensor SDK compatible APIs, and explore Azure Kinect Body Tracking sample projects to accelerate your Femto Mega integration.
Core Capabilities
- Industry-leading 120-degree horizontal and vertical field of view for comprehensive scene coverage
- Flexible depth capture at 1024x1024 resolution at 15 fps or 640x576 at 30 fps
- Ultra HD 3840x2160 color streaming at 25 frames per second
- Power-over-Ethernet support with USB 3.0 connectivity and integrated IMU sensor
- Precision hardware synchronization for multi-camera deployments
Technical Specifications
Imaging System
| Depth Technology | Time of Flight |
| Wavelength | 850nm |
| Depth Range | 0.25-5.46m depending on depth mode |
| Depth Resolution/FPS | Up to 1024x1024 at 15fps WFOV, 640x576 at 30fps NFOV |
| Depth FOV | H 120 degrees V 120 degrees WFOV, H 75 degrees V 65 degrees NFOV |
| RGB Resolution/FPS | Up to 3840x2160 at 25fps |
| RGB FOV | H 80 degrees V 51 degrees |
| Processing | NVIDIA Jetson Nano |
| IMU | Supported |
Depth typical systematic error accuracy less than 11 mm plus 0.1 percent distance; Depth random error std. dev. precision 17 mm or less
2D and 3D files available for download at Github.
Hardware Specifications

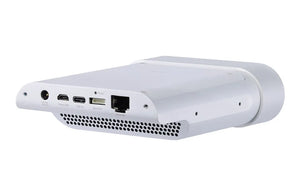

| Data Connection | USB 3.0 Type-C/Ethernet |
| Power Input | USB 3.0 Type-C/PoE Plus/DC 12V/2A Power Adapter |
| Trigger | Supported |
| Power Consumption | Average less than 13W |
| Operating Environment | 10 degrees C - 25 degrees C; Indoor/Semi-Outdoor; 8-90 percent RH non-condensing |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR and RGB |
| Dimensions W x H x D | 115mm x 40mm x 145mm |
| Weight | 560g |
| Installation | Bottom: 1/4-20UNC Side: 4 x M2.5 |
Industry Applications
Manufacturing Quality Assurance
Achieve micron-level precision in measuring product geometry and surface characteristics throughout production workflows, ensuring consistent output quality while minimizing material waste and defect rates.
Automated Parcel Dimensioning
Capture precise volumetric measurements of packages and pallets for optimized logistics planning, freight calculation, and warehouse space utilization with sub-centimeter accuracy.
Volumetric Video Production
Leverage megapixel depth data combined with 4K color capture to generate immersive volumetric content for augmented reality, virtual production, and next-generation broadcast applications with spatial tracking precision.
Medical Patient Alignment
Enable automated, contact-free patient positioning for radiological procedures, reducing radiation exposure while eliminating operator-dependent positioning variability in clinical imaging workflows.
Intelligent Fitness Training
Deliver instant biomechanical feedback and form correction during exercise sessions, helping users maintain proper technique and prevent injury through real-time skeletal tracking and movement analysis.
Onboard NVIDIA Jetson Processing Architecture
Expansive 120-Degree Sensing Coverage
Hardware Color-Depth Alignment

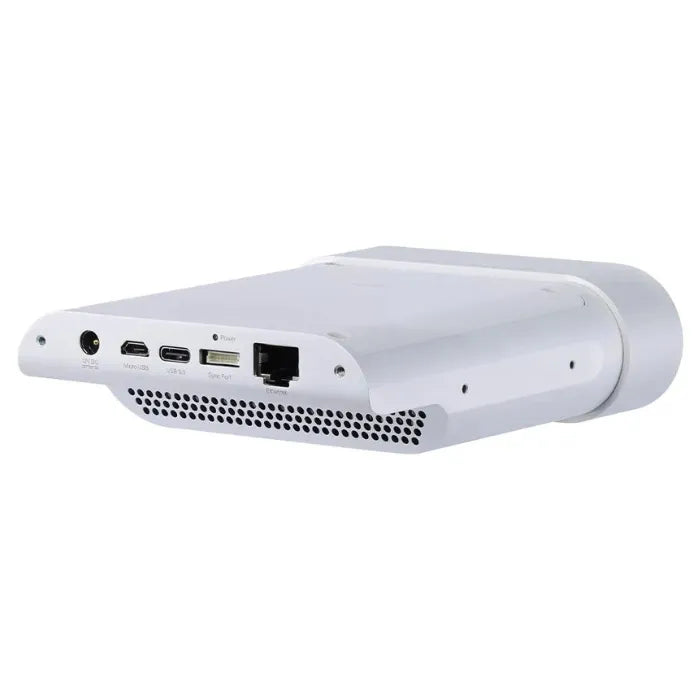

Simplified Single-Cable PoE or USB-C Connectivity
Multi-Camera Hardware Synchronization
