Seeed Studio reComputer Industrial R2145-12 Hailo-8 26 TOPS 16GB
🧠 Rugged, Industrial Edge AI/IoT Controller This powerhouse is driven by the Raspberry Pi CM5, with an optional upgrade to the powerful Hailo-8 AI accelerator ⚡ for up to 26 TOPS of performance. Engineered for demanding environments, it delivers true high-performance edge computing.
-
🛠️ Comprehensive industrial I/O ports for easy, flexible integration
-
📡 Diverse wireless options including Wi-Fi, BLE, and more
-
❄️ Silent, fanless thermal architecture ensures reliability
-
🌡️ Extended operational range: –20°C to +65°C
-
🏭 Guaranteed long-term production stability for enterprise deployments
🚀 Get reliable AI inference and robust connectivity for mission-critical applications in smart factories, edge robotics, and industrial automation.
Key Highlights
🚀 Maximum Edge Performance with Raspberry Pi CM5 Featuring the Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz 🧠, this controller offers powerful processing capabilities for complex AI and IoT tasks. Supports up to 16GB RAM and 64GB eMMC for seamless data management.
❄️ Extreme Thermal Resilience Its advanced fanless cooling system is designed to handle intensive AI processing loads. Guaranteed to operate reliably across a wide temperature spectrum: –20°C to +65°C 🌡️.
🏭 Industrial-Grade Dependability Built for continuous, mission-critical operations, incorporating:
-
⏱️ High-precision Real-Time Clock (RTC)
-
🛡️ Hardware Watchdog for system monitoring
-
🔋 Optional UPS Supercapacitor for backup power
-
🔐 Optional TPM / ATECC608A for enhanced security
-
🧱 IP40-rated, robust aluminum alloy casing
-
🧲 Flexible mounting with support for DIN-rail and wall options
-
📆 Production lifecycle guaranteed until **December 2036**
⚡ Dedicated AI Acceleration The optional Hailo-8 AI accelerator provides exceptional performance, reaching up to 26 TOPS, enabling real-time, multi-stream AI vision and analytics 🤖.
🔌 Comprehensive Industrial Connectivity
-

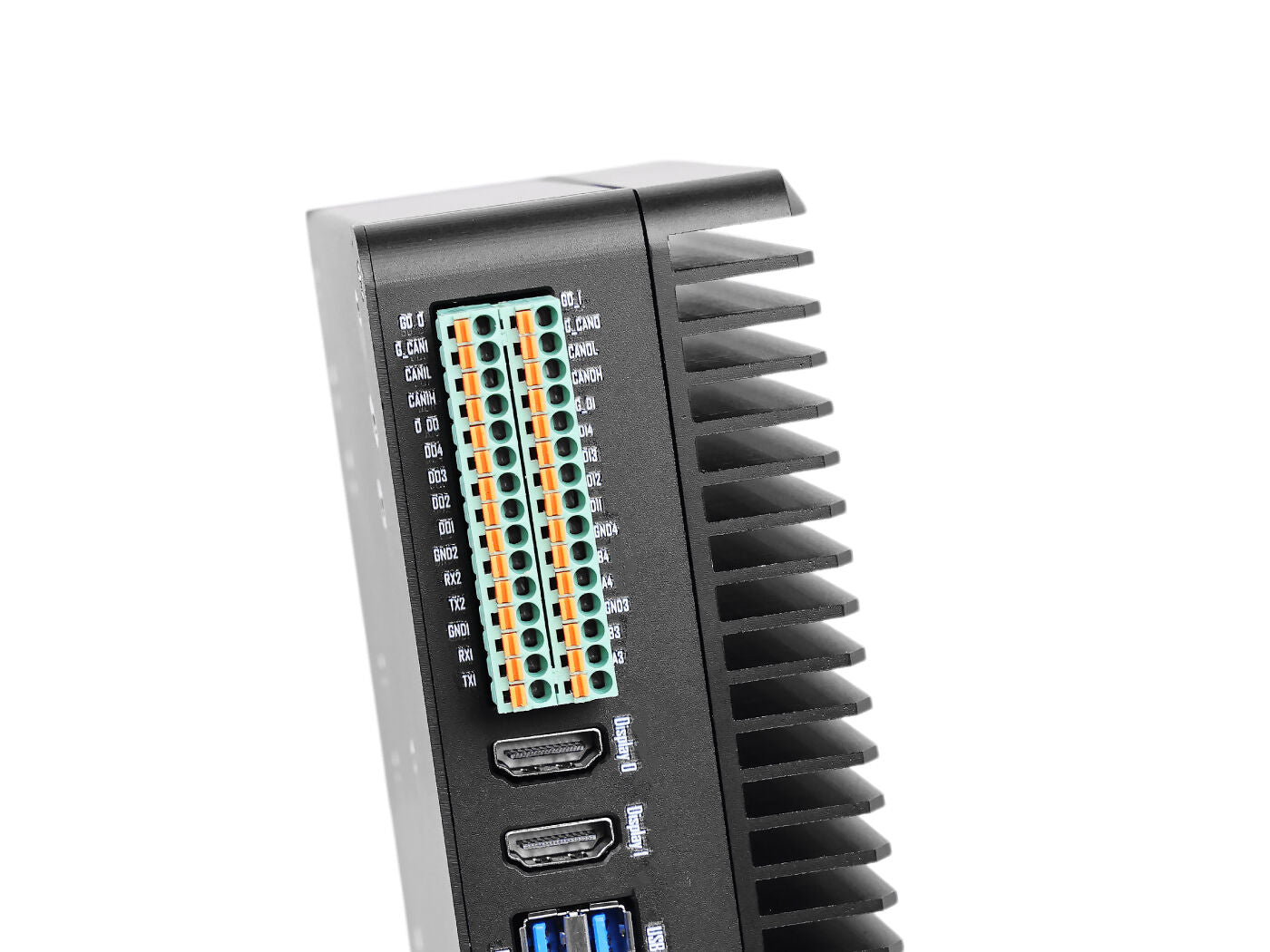

2× RS485, 2× RS232, 2× CAN FD (all essential industrial protocols)
-
4× DI, 4× DO (all isolated for industrial safety)
-
1× Gigabit Ethernet (with PoE support), 1× Fast Ethernet
-
2× HDMI 2.0 outputs
-
3× USB 3.0 Type-A, 1× USB 2.0 Type-A, 1× USB 2.0 Type-C (for OS updates/debug)
-
1× Nano SIM slot 📶
📡 Flexible Wireless Expansion
-
Integrated Wi-Fi & BLE
-
Mini-PCIe slot for adding LTE, LoRa®, or Zigbee modules
-
M.2 B-Key slot ready for 4G/5G connectivity expansion
Specifications
|
Hardware Specifications |
||
|
Product Series |
R21xx-12 |
R21xx-10 |
|
CPU |
Raspberry Pi Compute Module 5, 2.4GHz quad-core 64-bit Arm Cortex-A76 |
|
|
AI Processor |
1x Pre-installed Hailo-8 M.2 AI Acceleration, 26TOPS |
* |
|
Operating System |
Raspbian, Debian |
|
|
Memory & Storage |
2GB/4GB/8GB/16GB RAM, 16GB/32GB/64GB eMMC |
|
|
System Requirements |
||
|
Power Input |
DC 9V~36V, 2-pin Terminal Block |
|
|
PoE (as powered device) |
IEEE 802.3 at Standard 25.5W PoE |
|
|
Power Switch |
No |
|
|
Reboot Switch |
Yes |
|
|
Interface |
||
|
Ethernet & USB |
1x 10/100/1000 Mbps (supports PoE PD); 1x 10/100 Mbps IEEE 802.3/802.3u |
|
|
3x USB-A 3.0 Host; 1x USB-A 2.0 Host; 1x USB-C 2.0 (For flashing OS & Debug) |
||
|
COM and I/O |
2x RS485 (Isolated); 2x RS232 (Isolated); 2x CAN FD (Isolated) |
|
|
4x DI Ports (Isolated), input Voltage: 5~24V DC; 4x DO Ports (Isolated), output Voltage: <60V DC |
||
|
SIM Card |
1x Nano SIM Card Slot |
|
|
M.2 Slot |
1x M.2 M-key 2280 Slot for NVMe SSD; 1x M.2 M-key 2280 Slot for AI Accelerator (pre-installed Hailo-8 M.2 AI Acceleration 26TOPS); 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
1x M.2 M-key 2280 Slot for NVMe SSD; 1x M.2 M-key 2280 Slot for AI Accelerator; 1x M.2 B-key 3042/3052 Slot for 5G/4G LTE |
|
Mini-PCIe |
1x Mini-PCIe for LoRa module |
|
|
Control & Indication |
4x LEDs; 1x Buzzer; 1x Reset Button |
|
|
HDMI |
2 x HDMI 2.0 |
|
|
Wireless Communication |
Wi-Fi 2.4/5.0 GHz (On-chip); BLE 5.0 (On-chip); |
|
|
USB LoRa®*/SPI LoRa®* |
||
|
4G LTE/5G* |
||
|
USB Zigbee* |
||
|
Standards & Compliance |
||
|
EMC |
ESD: EN61000-4-2, Level 3; EFT: EN61000-4-4, Level 2; Surge: EN61000-4-5, Level 2 |
|
|
Certification |
CE, FCC, TELEC, RoHS, REACH |
|
|
Device & Environmental |
||
|
Ingress Protection |
IP40 |
|
|
Temperature |
Operating Temperature -20~65°C Storage Temperature -40~85°C |
|
|
Operating Humidity |
10~95% RH |
|
|
Reliability |
SuperCAP UPS LTC3350 Module* |
|
|
Hardware Watchdog: 1~255s |
||
|
High Accuracy RTC |
||
|
Security |
Encryption Chip TPM 2.0* |
|
|
ATECC608A* |
||
|
Heat Dissipation |
Fanless |
|
|
Warranty |
2 years |
|
|
Production Lifetime |
Until December 2036 |
|
|
Dimension (W x H x D) & Weight (Net) |

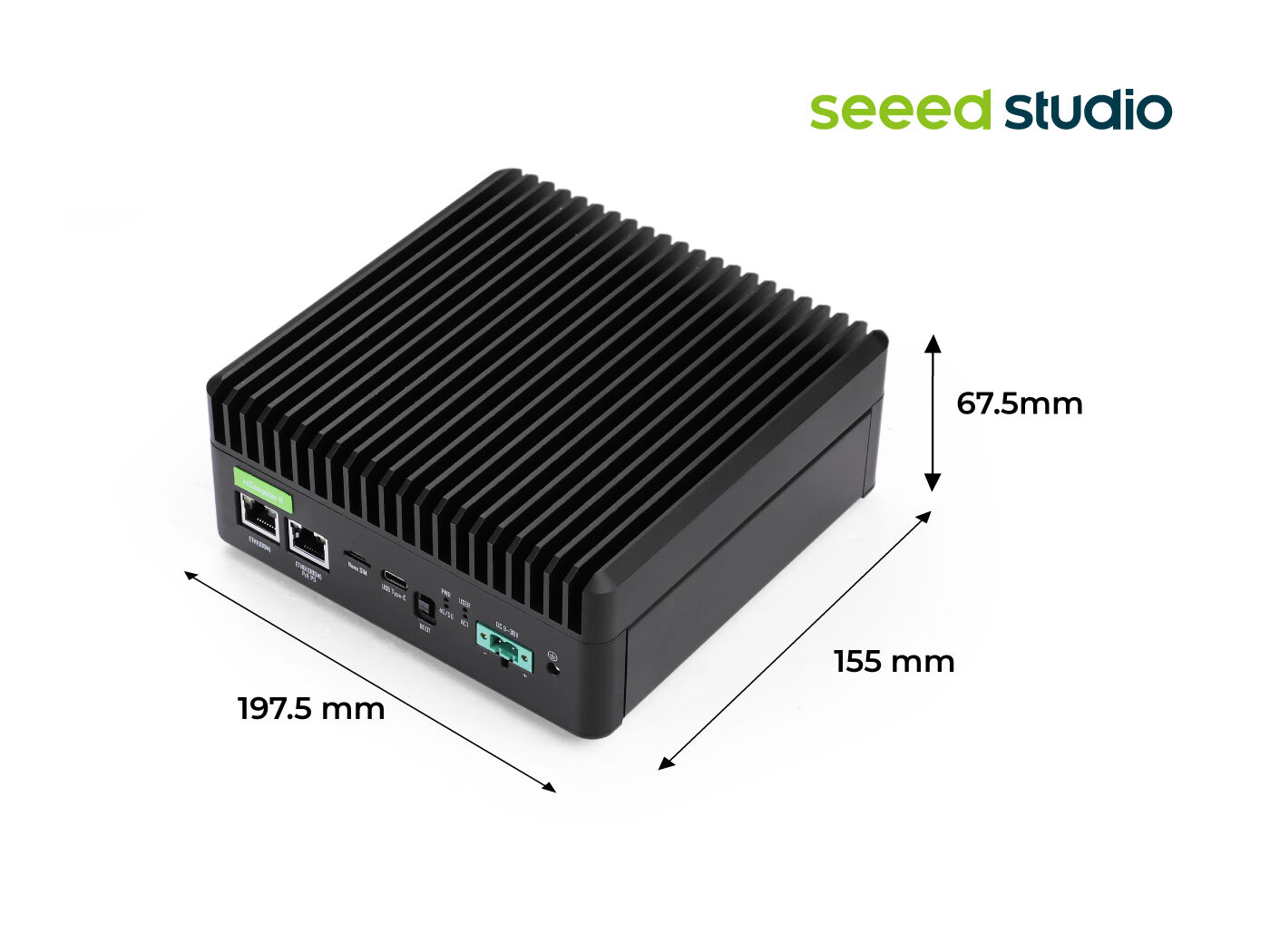

197.5 mm x 155 mm x 67.5 mm, 1280g |
|
|
Enclosure |
6063 aluminum alloy heat sink, 5052 aluminum alloy enclosure |
|
|
Mounting |
DIN-rail/Wall |
|
|
Statement |
Options marked with * require additional purchase according to the bundle. |
|
Applications
🧠 AI-Powered Intelligence at the Edge Capable of advanced functionalities including **object detection**, **recognition**, **tracking**, **OCR**, and **abnormal event detection** with real-time alerts 🚨. This industrial-grade controller delivers stellar performance even when deployed in resource-constrained locations.
🏭 Manufacturing & Industrial Automation Connects effortlessly to sensors, PLCs, and industrial machinery via its rich I/O suite 🔌. Supports multiple protocols for high-speed data acquisition and remote control, driving smarter, more efficient factory operations.
🎥 AI Video Analytics & Surveillance Perfectly suited for Network Video Recorder (NVR) systems, enabling advanced real-time video analysis such as:
-
🔍 Anomaly and threat detection
-
🧍 Crowd and occupancy monitoring
-
🧠 Real-time behavior analysis Enhances situational awareness and strengthens security posture.
🚦 Smart Transportation Systems Serves as a vital edge AI gateway, processing visual data from cameras and sensors instantly. Enables:
-
🚗 Intelligent traffic flow management and analysis
-
🅿️ Efficient smart parking and toll management Improves urban mobility and transport oversight.
🏢 Smart Building Management Interfaces with a range of IoT sensors to intelligently manage lighting, HVAC, and access control. Utilizes AI for:
-
⚡ Maximizing energy efficiency
-
🔧 Implementing predictive maintenance strategies
-
🛋️ Optimizing occupant comfort Delivers intelligent, holistic building automation.
🛍️ Smart Retail and Customer Experience Powers next-generation retail innovation through:
-
🛒 Real-time product recognition and inventory tracking
-
🎯 Creating personalized shopping experiences
-
📊 Advanced customer behavior analytics Optimizes store operations and deepens customer engagement.

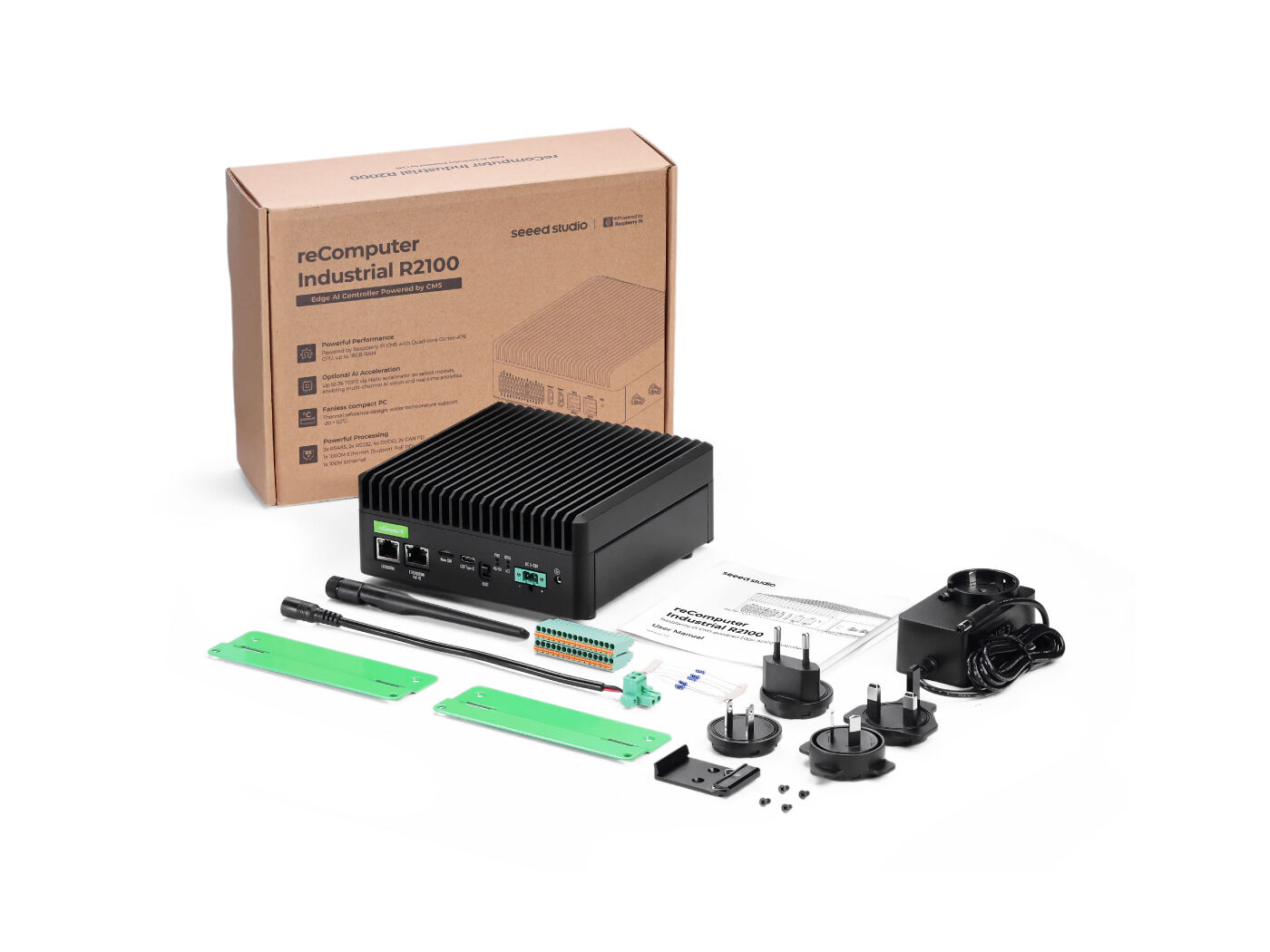

Part List
|
reComputer Industrial R2145-12 |
x 1 |
|

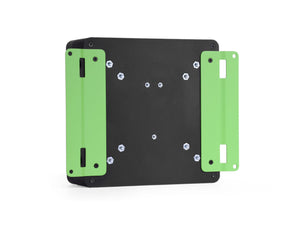

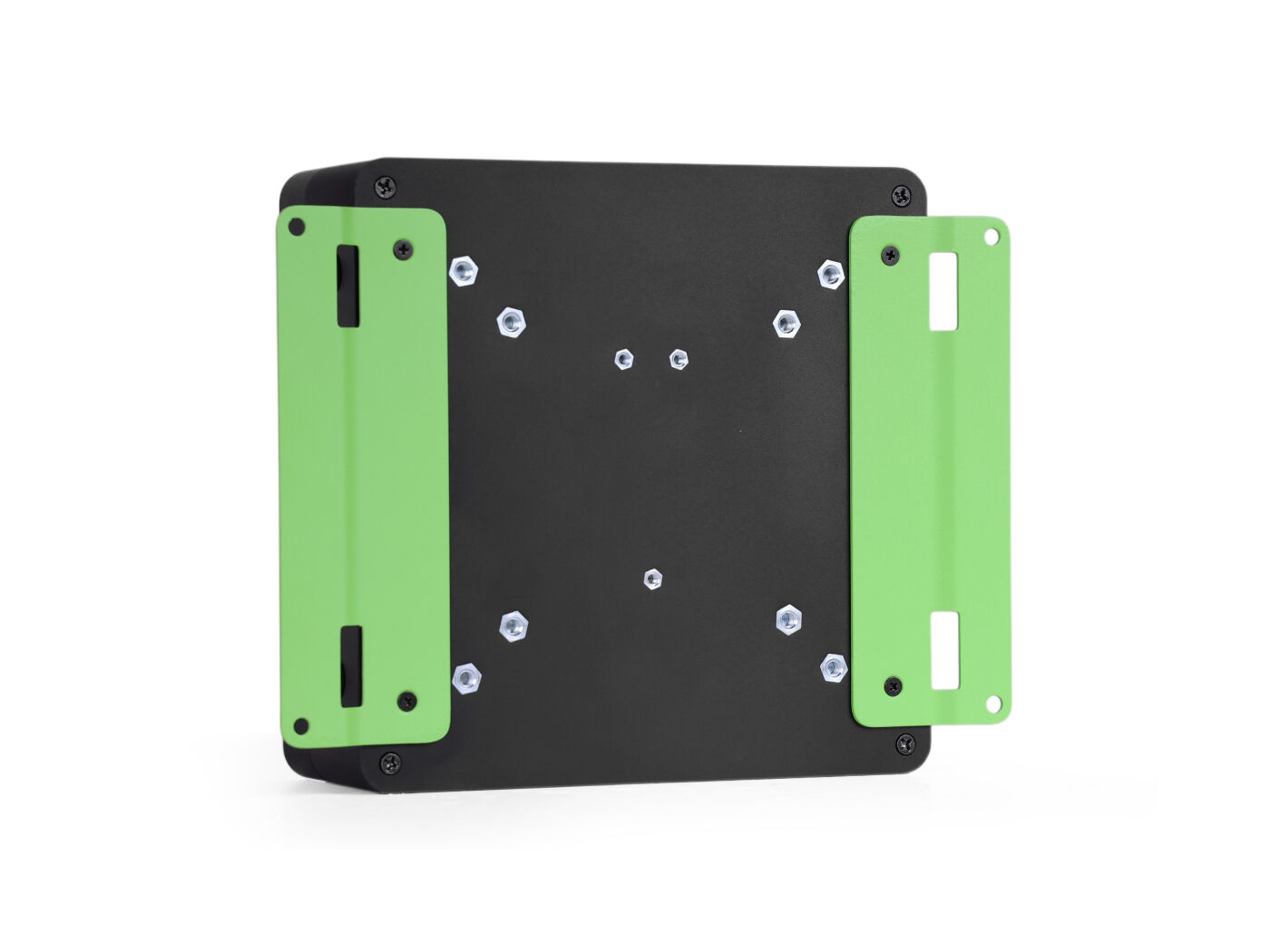

Mounting Bracket |
x 2 |
|
Bracket Screw |
x 4 |
|
DIN-rail Clip |
x 1 |
|
DC Power Female Jack to Screw Terminal Adapter |
x 1 |
|
12V/3A Power Adapter (with 4 interchangeable adapter plugs) |
x 1 |
|
15*2-pin Terminal Block Connector (Male) |
x 1 |
|
120Ω Resistor |
x 5 |
|
Wi-Fi/BLE Antenna |
x 1 |
|
User Manual |
x 1 |
