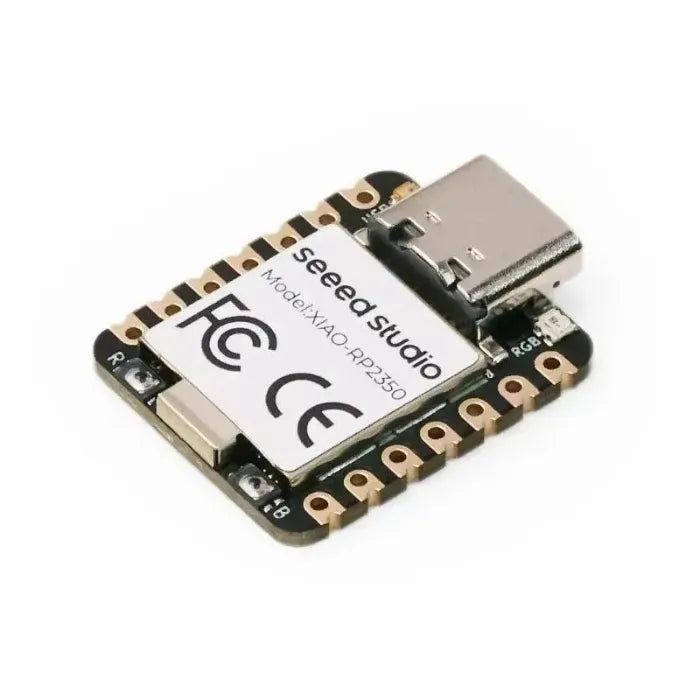

Seeed Studio XIAO RP2350 Raspberry Pi RISC-V 19 GPIOs Onboard RGB LED
The XIAO RP2350 is an impressive device that combines the remarkable features of the Raspberry Pi RP2350. It boasts a dual-core architecture with Arm Cortex-M33 cores operating at 150MHz alongside open-hardware Hazard3 RISC-V cores, enhancing security and encryption. Despite its compact size of just 21x17.5mm, the XIAO RP2350 offers 19 multifunction GPIOs, an RGB LED, and an innovative Battery Management System with ultra-low power consumption at 27μA, supporting battery power supply and direct voltage measurement. The XIAO ecosystem allows seamless connectivity with a variety of devices, including displays, LED matrices, Grove modules, CAN Bus, Vision AI sensors, and mmWave sensors. This makes the XIAO RP2350 ideal for developers of all experience levels who aim to create compact, battery-operated applications, whether for smart control, wearables, or DIY keyboards. It supports MicroPython, C, and C++ for diverse development options.
Features
- High-Performance MCU: Featuring the Raspberry Pi RP2350 chip, this device supports dual architectures, allowing developers to switch between dual Arm Cortex-M33 cores at 150MHz with FPU and open-hardware Hazard3 RISC-V cores.
- Advanced Security: Equipped with secure boot and an encrypted bootloader to enhance application security.
- Flexible Software Support: Compatible with C/C++ and MicroPython for effortless project development.
- Rich Onboard Components: Comes with an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs (Analog, Digital, I²C, UART, SPI, PWM).
- Expanded IO Capabilities: 8 additional IO pins enhance support for complex applications compared to previous XIAO models.
- Efficient Power Usage: Ultra-low consumption of only 27μA in sleep mode, allowing battery operation and direct voltage measurement via internal IO for improved battery management.

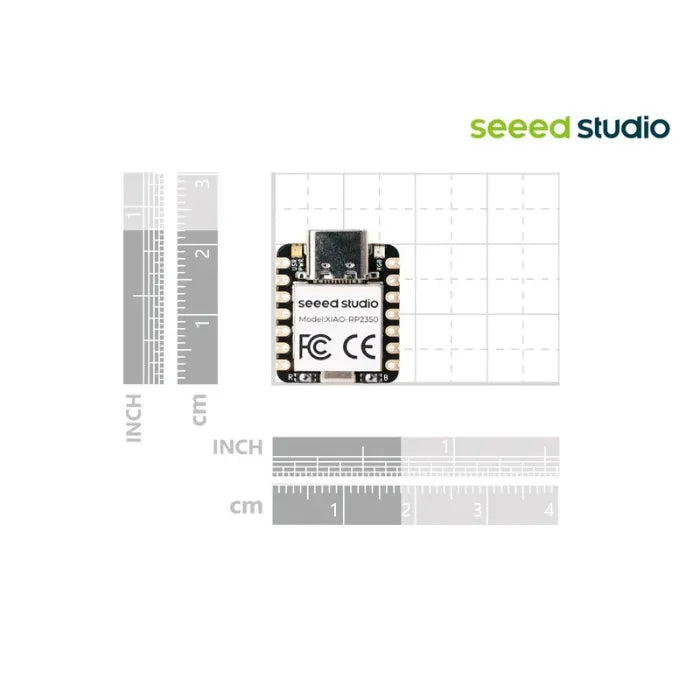

- Compact Design: At just 21 x 17.5mm, it follows the classic XIAO form factor, making it perfect for space-limited projects.
- Production-Ready: SMD design ensures all components are front-mounted with stamp holes on both sides for efficient mass production.
Specifications
|
Product |
XIAO RP2040 |
XIAO RP2350 |
|
Processor |
Raspberry Pi RP2040 |
Raspberry Pi RP2350 |
|
Dual Cortex-M0+ @ 133MHz |
Dual Cortex-M33 @ 150MHz, FPU |
|
|
RAM |
264kB SRAM |
520kB SRAM |
|
Flash |
2MB Onboard |
2MB Flash |
|
LEDs |
1 user LED, 1 power LED, two LEDs for serial downloading, 1 RGB LED |
1 user LED, 1 power LED, 1 RGB LED |
|
Interface |
11 Pins: 4x Analog,11x Digital, 1x I²C, 1x UART, 1x SPI, All PWM |
19 Pins: 3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM |
|
Button |
1 RESET button, 1 BOOT button |
1 RESET button, 1 BOOT button |
|
Security |
- |
OTP, Secure Boot, Arm TrustZone |
|
Low power |
- |
27μA |
|
Software compatibility |
Support Micropython / Arduino / CircuitPython |
Support Micropython / C,C++ |
|
Working Temperature |
-20°C-70°C |
-20°C-70°C |
|
Dimensions |
21x17.8 mm |
21x17.8 mm |

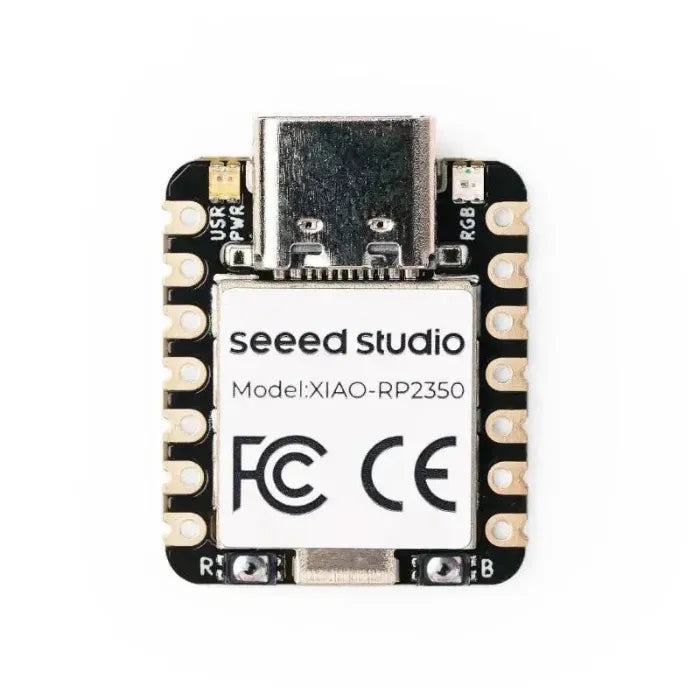

Hardware Overview

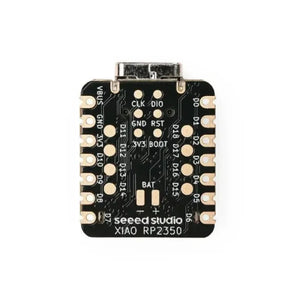

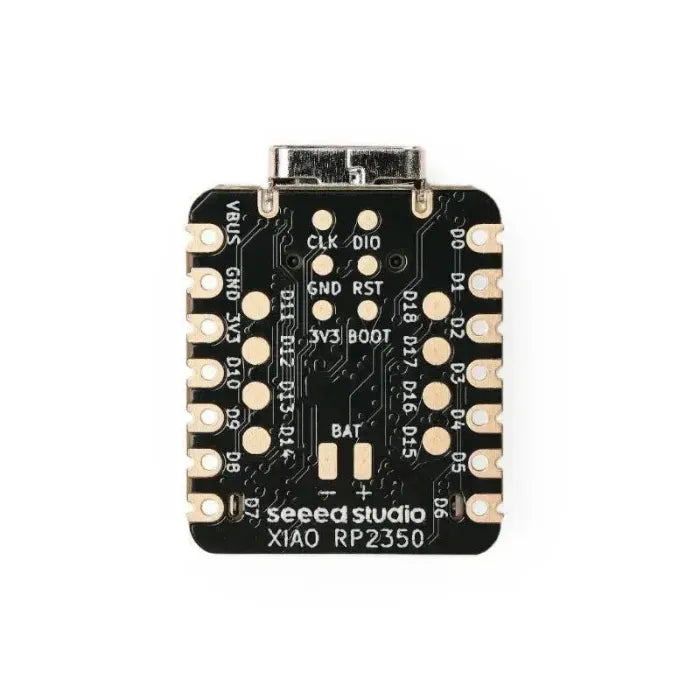

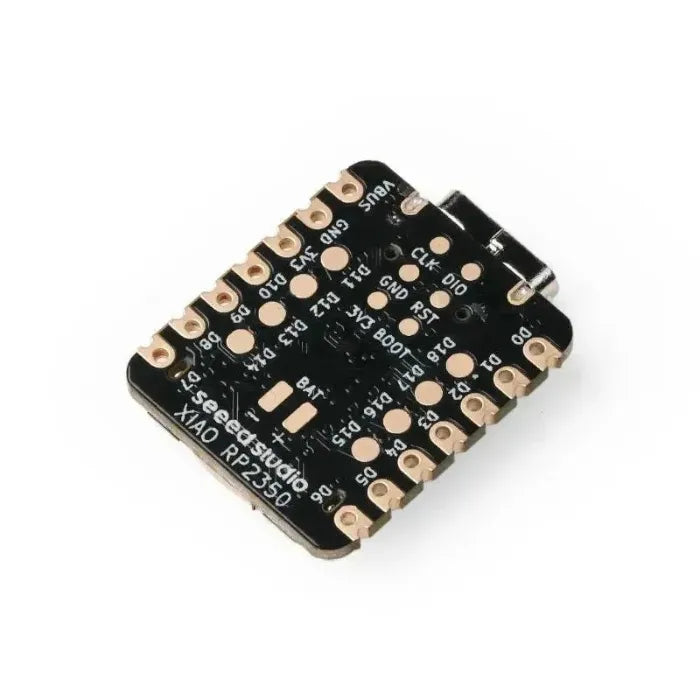

PinOut
Applications
- Smart Control Systems
- Human Interface Devices (HID) like DIY mechanical keyboards, joysticks, and consoles
- Educational Projects
- Robotics
- Wearable Technology
| HSCODE | 8543709990 |
| USHSCODE | 8473305100 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Included Parts
|
Seeed Studio XIAO RP2350 |
x 1 |
|
7 PinHeader |
x 2 |
