Seeed Studio XIAO SAMD21 Arduino Microcontroller
Feature
- Exceptional Performance: Driven by the SAMD21G18 microcontroller, operating at frequencies of up to 48MHz, featuring 32KB of SRAM and 256KB of embedded flash memory

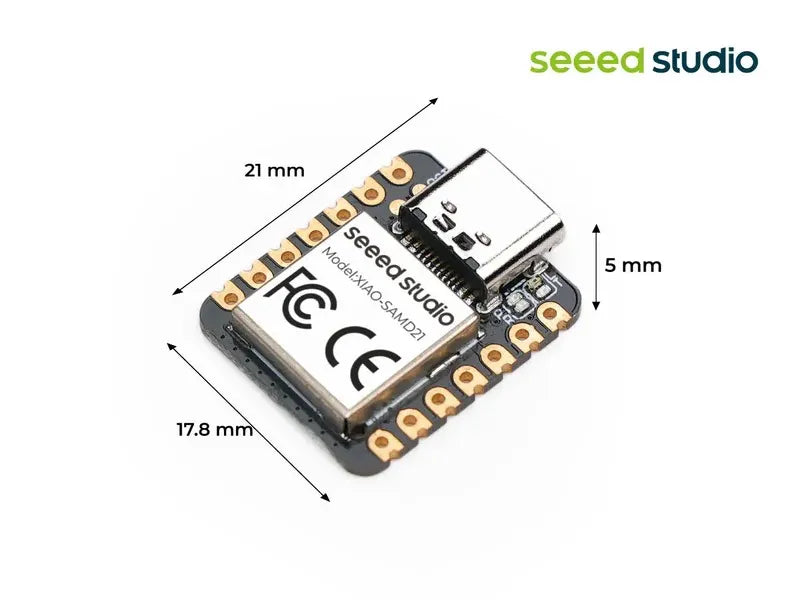

- Compact Size: Measuring just 21 x 17.5mm, this module follows the classic Seeed Studio XIAO format, ideal for integration into wearable technologies
- Versatile Development Interfaces: Includes 11 analog and 11 digital pins, 1 I2C interface, 1 UART port, and 1 SPI port
- Support for Multiple Development Environments: Compatible with Arduino, MicroPython, and CircuitPython, making it accessible for beginners and appealing for electronics enthusiasts
- Ideal for Mass Production: Breadboard-compatible SMD design with no components on the underside
Important Note
The XIAO SoM User Manual provides open-source hardware and software resources, alongside professional design guidelines to facilitate your project development, ensuring a smooth transition from concept to production.
Specifications
|
Specification |
Details |
|
Processor |
ARM Cortex-M0+ (SAMD21G18) running at a maximum of 48MHz |
|
Memory |
256KB Flash, 32KB SRAM |
|
I/O Pins |
14 GPIO pins, including 11 analog and 11 digital pins, plus 1 DAC output |
|
Interfaces |
1 I2C, 1 UART, 1 SPI, and USB Type-C interface |
|
LED Indicators |
Includes 1 user LED, 1 power LED, and two LEDs for serial downloading |
|
Reset Functionality |
Two reset buttons are available for manual resetting |
|
Software Compatibility |
Supports Arduino IDE |
|
Size |
21 x 17.8mm |
Hardware Overview
Caution
All I/O pins function at 3.3V; applying more than this voltage can damage the microcontroller.
Pinout Diagram
Applications
- Wearable technology
- Fast prototyping (can be connected directly to an extended PCB for a minimal setup)
- Suitable for any project requiring a mini Arduino
- DIY keyboards
- USB projects (such as USB to multi-channel TTL/USB host mode)
- Useful in scenarios requiring the reading of multiple mock values via DAC
Documentation

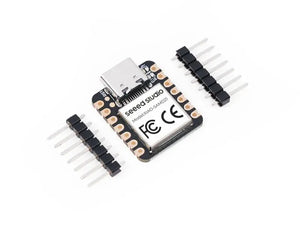

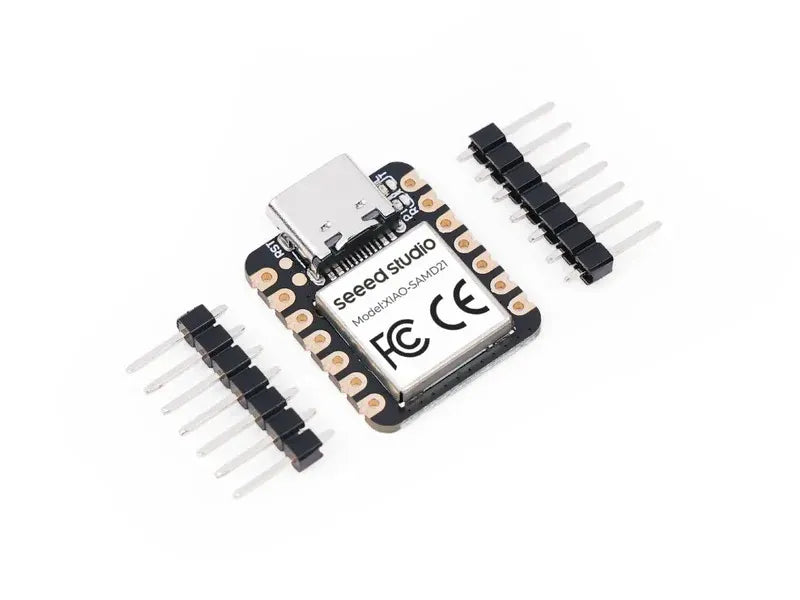

Component List
|
Seeed Studio XIAO SAMD21 |
X1 |
|
Adhesive Pads |
X4 |
|
7 Pin Header |
X2 |
