Seeed Studio SenseCAP Card Tracker T1000-E for LoRaWAN

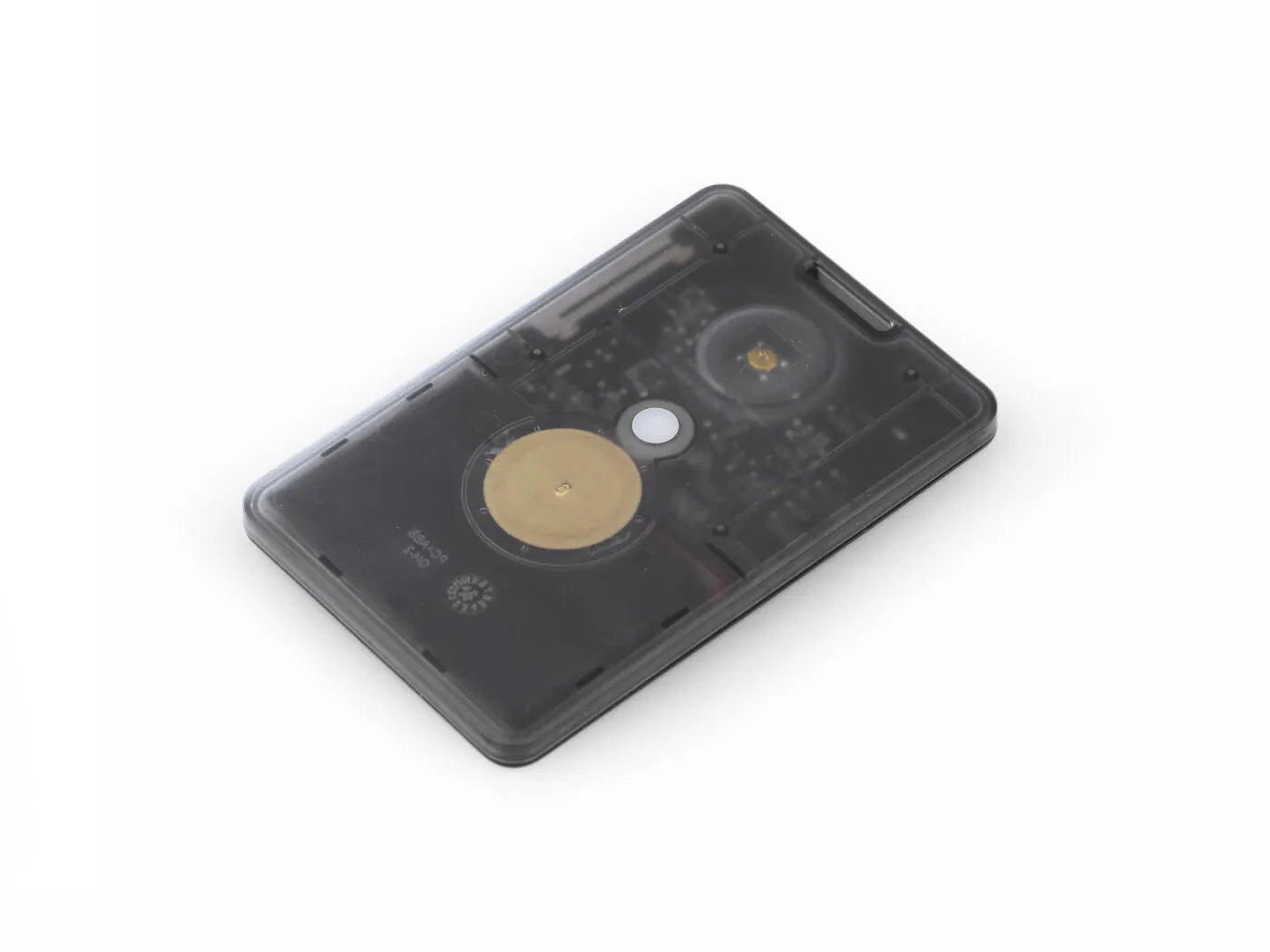

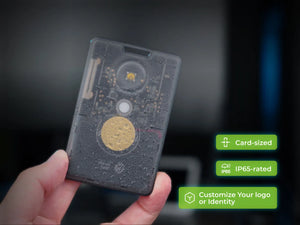

The Seeed Studio SenseCAP Card Tracker T1000-E is a compact, high-performance tracker designed specifically for off-grid communication and asset monitoring. Roughly the size of a credit card, it boasts an IP65-rated enclosure, ensuring resistance to dust and water jets, making it perfect for rugged outdoor applications.
Features
-
Meshtastic Compatibility: Preloaded with Meshtastic firmware, this device enables long-range, low-power communication using LoRa mesh networking, allowing direct communication over distances of 5–10 km and relaying messages through other devices to extend the range.
-
Advanced Connectivity: Features Semtech's LR1110 for LoRa communication, Nordic's nRF52840 for Bluetooth 5.0, and Mediatek's AG3335 GPS module for accurate positioning with multi-protocol support.
-
Built-in Sensors: Includes temperature and light sensors, offering environmental data in addition to location tracking.
-
Long Battery Life: Powered by a 700mAh rechargeable lithium battery, it delivers extended operation for remote applications.
-
Open-Source Firmware: Supports custom firmware updates via DFU mode, providing flexibility and adaptability for various use cases.
Specifications
|
General Parameters |
|
| Product Model | T1000-E |
| Backhaul | LoRaWAN® (v1.0.4 Class A) |
| Bluetooth | Bluetooth v5.1, setting via SenseCraft App |
| LoRaWAN Channel Plan | IN865/EU868/US915/AU915/AS923/KR920/RU864 |
| Temperature | Range: -20 to 60℃; Accuracy: ± 1℃; Resolution: 0.1℃ |
| Light | 0 to 100% (0 is dark, 100% is brightest) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
| LED and Buzzer | 1 LED and 1 buzzer to indicate status |
| Button | 1 Button to operate and trigger events (SOS) |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5 km (depending on gateway antenna, installation, and environments) |
| IP Rating | IP65 |

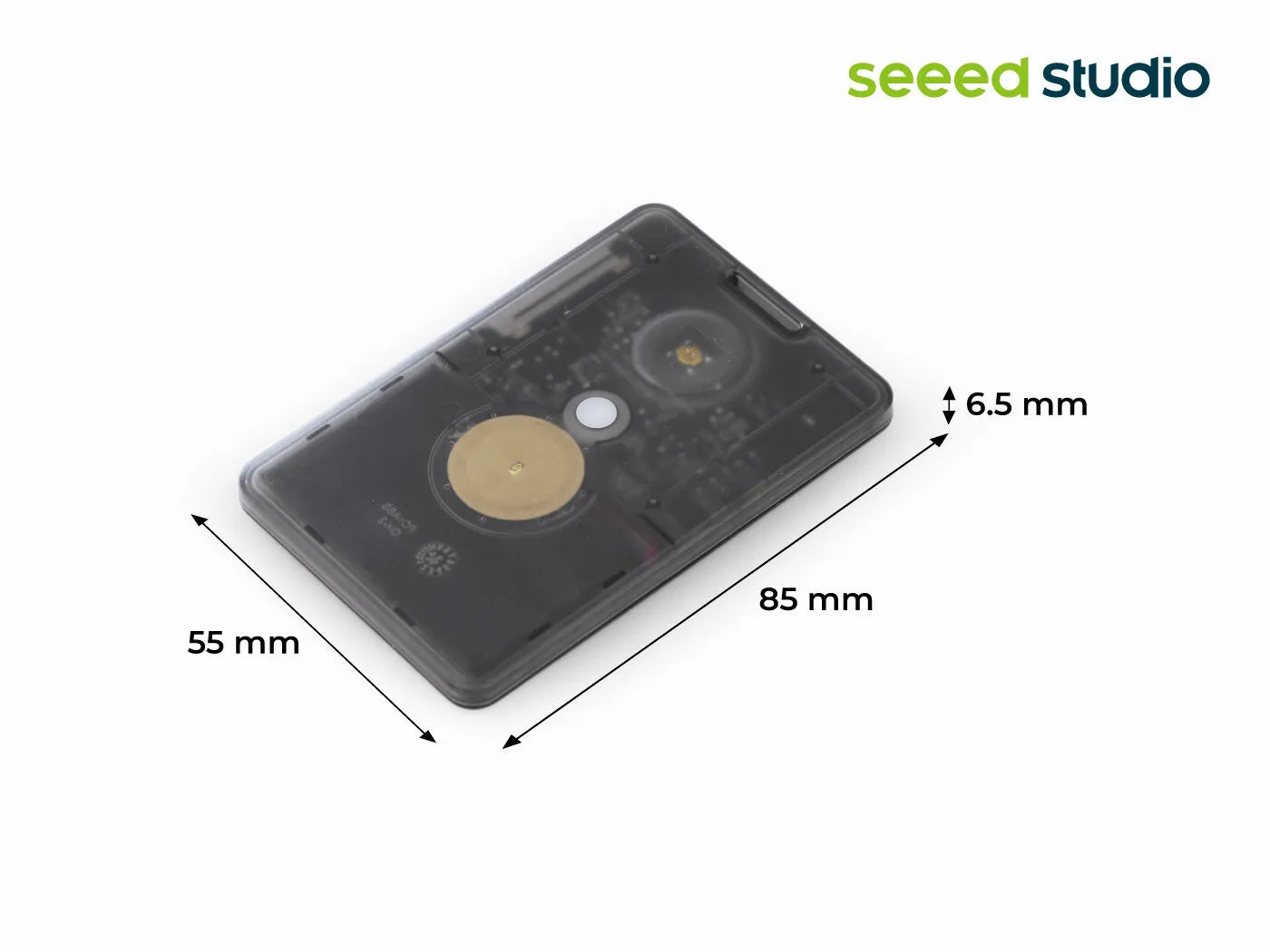

| Dimensions | 85 x 55 x 6.5 mm |
| Device Weight | 32 g |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |
| Certification | CE / FCC / RoHS |
|
Location |
|
| GNSS Constellation | GPS/GLONASS/Galileo/BeiDou/QZSS |
| GNSS Sensitivity | -145dBm cold start / -160 dBm Tracking |
| GNSS Location Accuracy | ~1m CEP, GPS, -130dBm |
| Wi-Fi Positioning | Passive scanning, uploads the scanned 3–5 MAC addresses |
| Bluetooth Positioning | Uploads the scanned 3 best signal MAC addresses of Beacon |
|
Battery |
|
| Battery Capacity | Rechargeable lithium battery, 700mAh |
| *Battery Life Estimates | 3 months on a single charge (u-pleink every 1 hour, only GNSS data) |
| Battery Life Monitoring | Periodic uplink battery level |

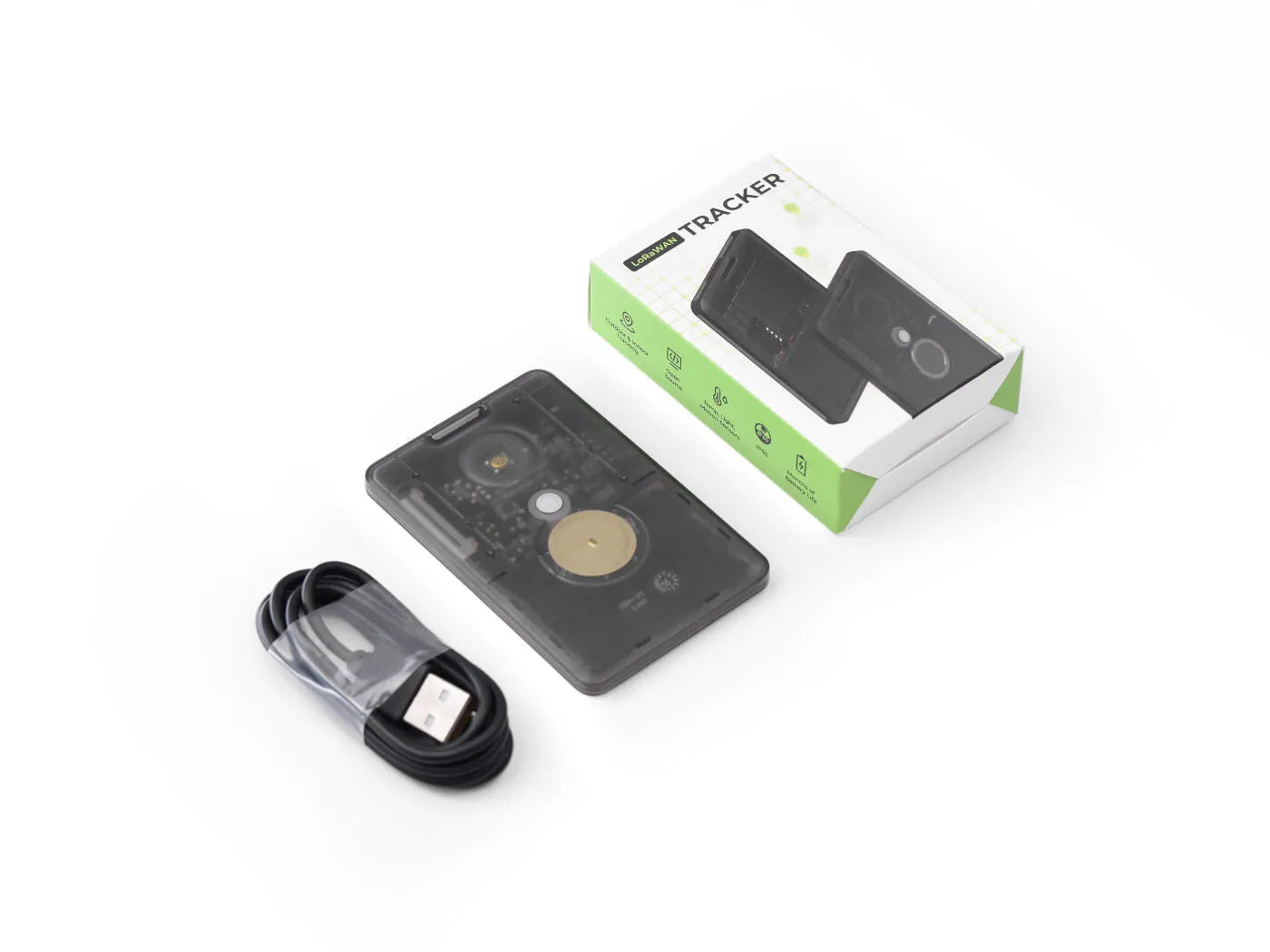

| Charge Cable (Adapter not included) | USB magnetic charging cable, 1 meter |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature | 0 to +45℃ |
Hardware Overview
Applications
- Asset Tracking: Monitor asset status and location remotely, sending location data to the cloud via LoRaWAN. Users can view real-time position and trajectory on mobile or PC platforms.
- Environmental Monitoring: Utilize built-in thermal and light sensors, along with a 3-axis accelerometer, to collect and upload environmental data in real time for remote monitoring.
- Logistics Management: Attach to vehicles or packages to track cargo transport status (routes, stops, on-time arrivals) in real time, assisting logistics firms with scheduling and management.
